Bulgin
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 附件类型 | Cable Gland, Collet |
| 配用/相关产品 | Buccaneer® 400 Connectors |
| 标准包装 | 25 |
| 其他名称 | 708-1100 |
| IP等级 | IP68 |
| 材质 | Polyamide |
| 最大电缆直径 | 7mm |
| 最高工作温度 | +80°C |
| 最小电缆直径6.35mm的 | 5mm |
| 最低工作温度 | -40°C |
| RoHS指令 | Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Standard Circular Connector |
| 防护等级 | IP 68 |
| 系列 | Buccaneer 400 |
| 产品类型 | Accessories |
| RoHS | RoHS Compliant |
| Cable Diameter Min - Metric | :5mm |
| Cable Diameter Max - Metric | :7mm |
| Thread Size - Imperial | :- |
| Cable Gland Material | :- |
| Gland Colour | :- |
| IP / NEMA Rating | :IP68 |
| 适用于 | :400 Series Buccaneer Connectors |
| Weight (kg) | 0.003 |
| Tariff No. | 85366990 |
| Gland Color | :- |
| Leaded Process Compatible | :Yes |
| Brand/Series | 400Series |
| ForUseWith | Cablesfrom5.0mmto7.0mmDia. |
| 保护功能 | MaintainsIP68RatingofUnmatedConnectors |

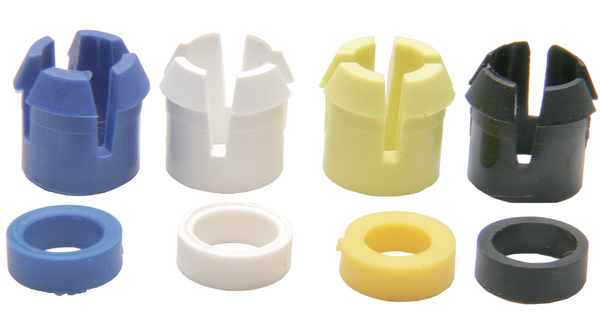

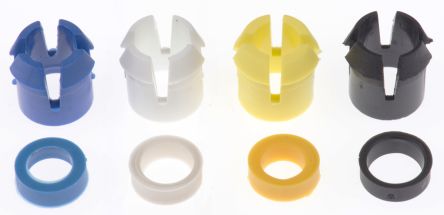

| Kit contents | 4 gaskets for cables with diameter 5-5.5 5.5-6 6-6.5 6.5-7 mm |
| Multiplicity | 1 |
| Gross weight | 3.19 g |
| 应用 | PX04.. |
| Collective package [set] | 100 |
| Connector accessories type | gaskets set |
| Connector series | Buccaneer 400 |
| Cable external diameter | 5...7mm |
| 密封 | IP68 |
