Bulgin

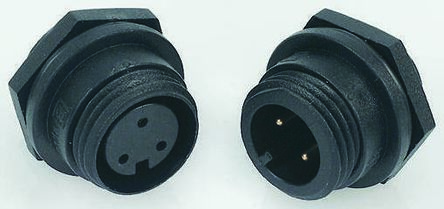

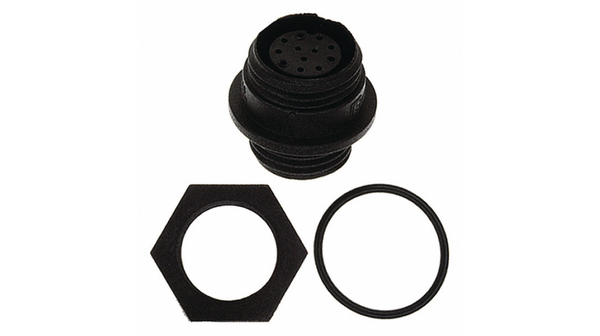

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 防护等级 | IP68 - Dust Tight, Waterproof |
| 定位 | Keyed |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 连接器类型 | Receptacle for Female Contacts |
| 外壳材料，表面处理 | Polyamide |
| 注 | Contacts Not Provided |
| 紧固型 | Threaded |
| 标准包装 | 25 |
| 触点类型 | Crimp and Solder Cup |
| 位置数 | 12 |
| 身体上的取向 | Straight |
| 联系人性别 | Female |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold |
| 额定电流 | 1A |
| 最高工作温度 | +80°C |
| 最低工作温度 | -40°C |
| 触点数 | 12 |
| 系列 | Buccaneer |
| 端接方式 | Crimp |
| 额定电压 | 50 V ac/dc |
| RoHS指令 | Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Standard Circular Connector |
| 外壳材质 | Plastic |
| 安装风格 | Panel |
| 位置/触点数 | 12 |
| 外壳类型 | Receptacle |
| 产品类型 | Connectors |
| RoHS | RoHS Compliant |
| Connector Body Material | :Nylon (Polyamide) |
| 性别 | :Receptacle |
| Connector Mounting | :Cable |
| Connector Shell Size | :- |
| 插入安排 | :- |
| No. of Positions | :12 |
| SVHC | :No SVHC (19-Dec-2012) |
| Cable Diameter Max | :7mm |
| Cable Diameter Min | :3mm |
| 接触电阻 | :5mohm |
| 可燃性等级 | :UL94V-0 |
| IP / NEMA Rating | :IP68 |
| 绝缘电阻 | :10Mohm |
| O Ring Material | :Nitrile |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-40°C |
| Voltage Rating V AC | :50V |
| Wire Size AWG Max | :24AWG |
| Wire Size AWG Min | :28AWG |
| 工作电压 | :50V |
| Weight (kg) | 0.004 |
| Tariff No. | 85366990 |
| AgencyApprovals | ULRecognized/CSA/VDE |
| Angle | Straight |
| Brand/Series | 400Series |
| ContactPlating | Gold |
| ContactType | Socket |
| Current,Rating | 1A |
| FlammabilityRating | UL94-V0 |
| HousingType | Plastic |
| IPRating | IP68 |
| Material,Housing | Polyamide |
| MatingType | Threaded |
| MountMethod | Front |
| MountingType | JamNut |
| NumberofContacts | 12 |
| PrimaryType | Sealed |
| 端子 | Crimp/Solder |
| 类型 | PanelSocket |
| Voltage,Rating | 50VAC/VDC |
| Wire,AWG | 24-28 |
| 锁定系统 | threaded joint, external thread |
| Mechanical mounting | for panel mounting, screwed |
| Flammability rating | UL94V-0 |
| Body dimensions | Ø22 x 19.9mm |
| Multiplicity | 1 |
| Connector variant | w/o terminals |
| Connector type | female |
| 连接器 | socket |
| Gross weight | 0.01 kg |
| Body material | polyamide |
| Operating temperature | -40...80°C |
| 针数 | 12 |
| 额定电压 | 50V |
| Connector series | Buccaneer 400 |
| 密封 | IP68 |
| Collective package [pcs] | 50 |
| spg | 50 |
