Bulgin

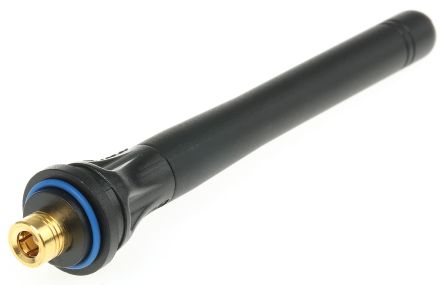

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 频带数目 | 1 |
| 高度（最大） | 3.6" (91.5mm) |
| 天线类型 | Whip: 1/2 Wave, Fixed |
| 端子 | SMB connector |
| 封装 | Bulk |
| 频率 | 2.4GHz ~ 2.5GHz |
| 标准包装 | 10 |
| 安装类型 | Screw Mount |
| 驻波比 | 2 |
| 其他名称 | 708-1456 |
| 连接器类型 | SMB |
| 内部/外部 | External |
| Supported Frequency Bands | 2.4 → 2.5 GHz |
| RoHS指令 | Compliant |
| 工厂包装数量 | 10 |
| 频率范围 | 2.4 GHz to 2.5 GHz |
| 产品种类 | Antennas |
| 外形尺寸 | 91.5 mm L |
| 端接类型 | SMB |
| 长度 | 91.5 mm |
| 阻抗 | 50 Ohms |
| 技术类型 | 1/2 Wave Antenna |
| RoHS | RoHS Compliant |
| Frequency Min | :2.4GHz |
| Frequency Max | :2.5GHz |
| 输入阻抗 | :50ohm |
| Antenna Polarisation | :Vertical |
| Antenna Applications | :Bluetooth, GSM, Instrumentation & Telemetry Equipment, Wireless LAN, Zigbee |
| Antenna Mounting | :Panel |
| Frequency Coverage | :2.4 - 2.5 GHz |
| Gain Ranges | :2 dBi |
| Weight (kg) | 0.01 |
| Tariff No. | 85291080 |
| AntennaType | OmniDirectional |
| ConnectionType | SMB |
| FrequencyRange | 2.4-2.5GHz |
| MatesWith | PX0414 |
| UsedWith | SMBPX0414 |
| 锁定系统 | threaded joint, internal thread |
| Multiplicity | 1 |
| Connector type | SMB Buccaneer PX0414 |
| Gross weight | 0.01 kg |
| Operating temperature | -20...65°C |
| Connector series | Buccaneer Antenna |
| Communications modules accessories type | antenna |
| Kind of antenna | GPS, GSM |
| 密封 | IP68 |
| Input impedance | 50Ω |
| Collective package [pcs] | 250 |
| spg | 250 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
