Bulgin

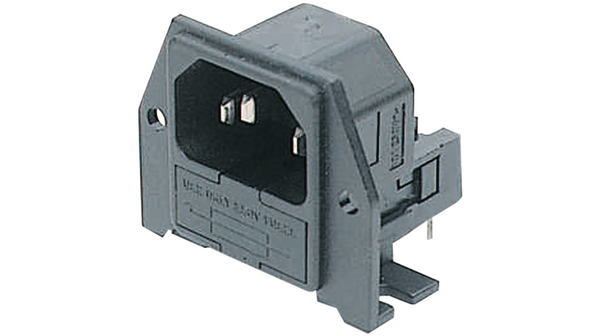

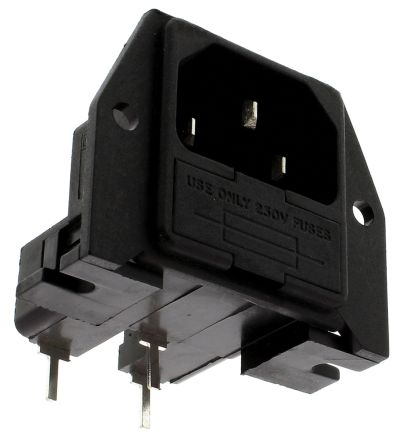

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 系列 | * |
| 标准包装 | 1 |
| 身体上的取向 | Right Angle |
| 额定电流 | 10A |
| 性别 | Male |
| IEC连接器类型 | C14 |
| 安装类型 | Through Hole |
| 端接方式 | Solder |
| 额定电压 | 250 V ac |
| RoHS指令 | Not Applicable |
| 工厂包装数量 | 100 |
| 产品 | Inlets |
| 产品种类 | AC Power Entry Modules |
| 融合 | Yes |
| 开关功能 | Not Switched |
| 过滤 | No |
| RoHS | RoHS Compliant |
| Connector Mounting | :Panel |
| 接触端子 | :Through Hole Right Angle |
| SVHC | :No SVHC (19-Dec-2012) |
| Approval Category | :CSA, IMQ, SEMKO, UL, VDE |
| 外壳材料 | :Black glass filled nylon |
| 连接器类型 | :IEC |
| 固定中心 | :36mm |
| 安装孔直径 | :3.4mm |
| 可燃性等级 | :UL94V-0 |
| Fuse Power Dissipation Max | :2.5W |
| Fuse Size Held | :5mm x 20mm |
| No. of Fuses | :2 |
| No. of Outlets | :1 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Panel Cut-out Depth | :27.3mm |
| Panel Cutout Width | :31.1mm |
| 面板厚度 | :1.5mm |
| 终端类型 | :6.35mm x 0.8mm |
| Voltage Rating V AC | :250V |
| Weight (kg) | 0.018 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
