Bulgin

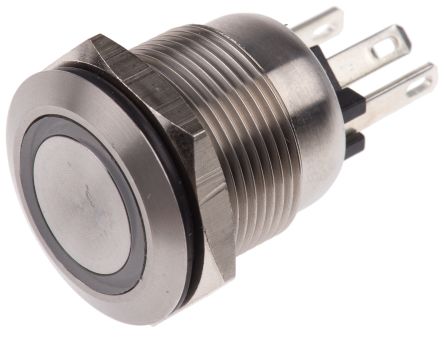

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器颜色 | Silver |
| 执行器类型 | Button |
| 表壳颜色 | Stainless Steel |
| 联系配置 | SP-NO |
| 触点额定电流 | 50 mA @ 24 V dc |
| 触点材料 | Gold Plated |
| 照明 | Yes |
| IP等级 | IP66 |
| 指示灯颜色 | Green/Blue |
| 最高工作温度 | +70°C |
| 最低工作温度 | -30°C |
| 安装类型 | Panel Mount |
| 面板上切出直径6.35mm的 | 19.2mm |
| 开孔尺寸尺寸 | 19.2mm |
| 开关操作 | Momentary |
| 终端类型 | Solder |
| 产品种类 | Pushbutton Switches |
| RoHS | RoHS Compliant |
| 操作力 | :12N |
| Contact Voltage DC Max | :24V |
| Contact Current Max | :50mA |
| Actuator / Cap Colour | :Chrome |
| Switch Terminals | :Connector |
| 照明颜色 | :Blue, Green |
| Bezel Diameter | :22mm |
| 颜色 | :Blue / Green |
| Contact Current DC Max | :50mA |
| 接触电阻 | :100mohm |
| 外部深度 | :30.3mm |
| External Length / Height | :31mm |
| Forward Current If Max | :20mA |
| IP / NEMA Rating | :IP66 |
| 绝缘电阻 | :1000Mohm |
| No. of Electrical Operations | :35000 |
| No. of Mechanical Operations | :750000 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-30°C |
| 面板开孔直径 | :19.2mm |
| Weight (kg) | 0.25 |
| Tariff No. | 85365080 |
| RoHS指令 | RoHS Compliant Part |
