Bulgin

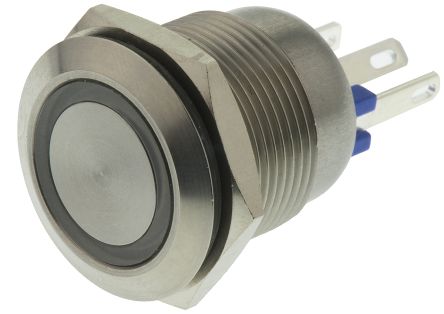

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 类型 | Vandal Resistant, Illuminated |
| 开关功能 | Off-Mom |
| 额定电流 | 50mA (DC) |
| 面板开孔尺寸 | Circular - 19.20mm Dia |
| 安装类型 | Panel Mount, Front |
| 电气寿命 | 35,000 Cycles |
| 端接类型 | Quick Connect - 0.110" (2.8mm) |
| 颜色 - 致动器/帽 | Silver |
| 工作温度 | -30°C ~ 70°C |
| 发光类型，颜色 | LED, Blue |
| 执行器类型 | Round, Button, Flush |
| 标准包装 | 25 |
| 额定电压 - DC | 24V |
| 防护等级 | IP66 - Dust Tight, Water Resistant |
| 机械寿命 | 750,000 Cycles |
| 照明电压（标称） | 3.5 VDC |
| 电路 | SPST-NO |
| 产品特点 | Stainless Steel |
| 联系配置 | SP |
| 触点额定电流 | 0.05 A @ 24 V dc |
| 最高工作温度 | +70°C |
| 最低工作温度 | -30°C |
| RoHS指令 | Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Pushbutton Switches |
| 触点电镀 | Gold |
| 系列 | MPI |
| 触点形式 | SPST |
| 直流电额定电压 | 24 V |
| 外壳材料 | Stainless Steel |
| 可燃性等级 | UL 94 V-0 |
| 安装风格 | Panel |
| 执行器 | Round |
| RoHS | RoHS Compliant |
| 开关操作 | :Off-(On) |
| 操作力 | :12N |
| Contact Voltage DC Max | :24V |
| Contact Current Max | :50mA |
| Actuator / Cap Colour | :Chrome |
| Switch Terminals | :Connector |
| 照明颜色 | :Blue |
| SVHC | :No SVHC (19-Dec-2012) |
| Bezel Diameter | :22mm |
| 颜色 | :Blue |
| Contact Current DC Max | :50mA |
| 接触电阻 | :100mohm |
| 外部深度 | :11mm |
| External Length / Height | :32.7mm |
| 正向电压 | :3.4V |
| IP / NEMA Rating | :IP66 |
| 绝缘电阻 | :1000Mohm |
| Luminous Intensity Typ | :1500mcd |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-30°C |
| 面板开孔直径 | :19.2mm |
| 终端类型 | :Connector |
| Weight (kg) | 0.022 |
| Tariff No. | 85365011 |
| ActuatorType | Round |
| Current,Rating | 50mA |
| DielectricStrength | >2kV(ContacttoPanel),1500V(ContacttoContact) |
| ElectricalLife | 35000(Min.) |
| Force,Operating | 12 |
| IPRating | IP66 |
| LEDFunction | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. |
| Material,Contact | GoldPlated |
| Material,Terminal | CopperAlloy |
| MechanicalLife | 750000(Min.) |
| MountingHoleSize | 19.2mm |
| MountingType | Panel |
| NumberofPoles | 1 |
| 操作 | PushtoMake |
| Resistance,Insulation | >1000Megohms |
| SpecialFeatures | RingIlluminated |
| Temperature,Operating | -30to+70°C |
| 端子 | SolderLugs |
| Voltage,Rating | 24VDC |
