Bulgin

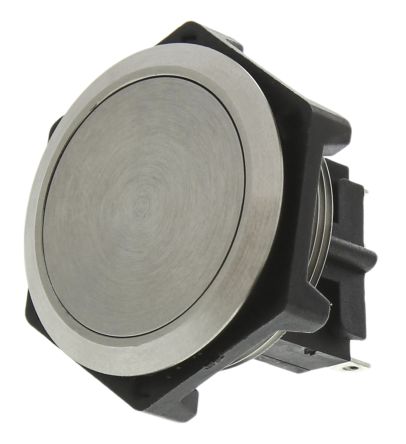

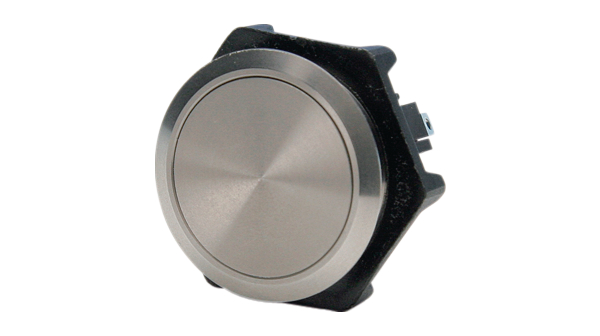

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 额定电流 | 5A (AC), 2A (DC) |
| 额定电压 - AC | 250V |
| 电气寿命 | 35,000 Cycles |
| 端接类型 | Solder Lug |
| 工作温度 | -20°C ~ 70°C |
| 面板开孔尺寸 | Circular - 27.70mm Dia |
| 机械寿命 | 1,000,000 Cycles |
| 类型 | Vandal Resistant |
| 封装 | Tray |
| 标准包装 | 25 |
| 开关功能 | On-Mom |
| 电路 | SPDT |
| 额定电压 - DC | 28V |
| 安装类型 | Panel Mount, Front |
| 颜色 - 致动器/帽 | Silver |
| 执行器类型 | Round, Button, Flush |
| 其他名称 | 708-1436 |
| 执行器颜色 | Silver |
| 表壳颜色 | Stainless Steel |
| 联系配置 | SP-NO/NC |
| 触点额定电流 | 2 A @ 28 V dc, 5 A @ 250 V ac |
| 触点材料 | Fine Silver |
| IP等级 | IP68 |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 面板上切出直径6.35mm的 | 27.7mm |
| 开孔尺寸尺寸 | 27.7mm |
| 开关操作 | Momentary |
| 终端类型 | Solder |
| RoHS指令 | Compliant |
| 电压额定值AC | 250 V |
| 产品种类 | Pushbutton Switches |
| RoHS | RoHS Compliant |
| 标准包装 | 25 |
| 操作力 | :4.7N |
| Contact Voltage AC Max | :250V |
| Contact Current Max | :5A |
| Actuator / Cap Colour | :Natural |
| Switch Terminals | :Solder |
| 照明颜色 | :- |
| Contact Current AC Max | :5A |
| 接触电阻 | :10mohm |
| Dielectric Strength VAC | :2000VAC |
| 绝缘电阻 | :10Mohm |
| No. of Electrical Operations | :35000 |
| No. of Mechanical Operations | :1000000 |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 面板厚度 | :5.7mm |
| Weight (kg) | 0.04 |
| Tariff No. | 85365080 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
