Bulgin

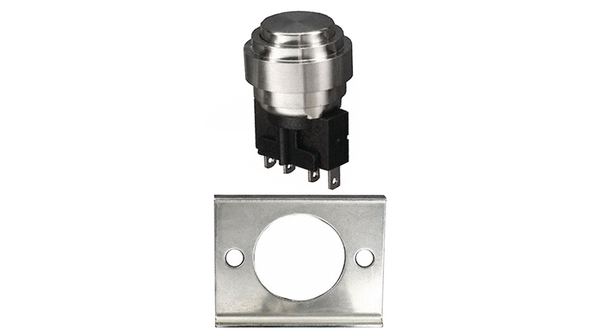

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工厂包装数量 | 25 |
| 电压额定值AC | 250 V |
| 产品种类 | Pushbutton Switches |
| 额定电流 | 5 A |
| 系列 | MP |
| 触点形式 | SPST |
| 开关功能 | OFF - (ON) |
| 端接类型 | Solder Pin |
| 安装风格 | Through Hole |
| 外壳材料 | Stainless Steel |
| 触点电镀 | Silver |
| 执行器 | Round |
| RoHS | RoHS Compliant |
| 联系配置 | :SPST-NO |
| 开关操作 | :(Not Available) |
| Contact Voltage AC Nom | :250V |
| Contact Voltage DC Nom | :28V |
| Contact Current Max | :5A |
| 执行器风格 | :- |
| Switch Terminals | :Screw |
| Actuator / Cap Colour | :Chrome |
| SVHC | :No SVHC (19-Dec-2012) |
| 颜色 | :Silver |
| Contact Current @ Contact Voltage AC Max | :5A |
| Contact Current AC Max | :5A |
| 触点额定电流 | :5A |
| Dielectric Strength VDC | :2kV |
| 外部深度 | :28.3mm |
| External Diameter | :20mm |
| External Length / Height | :28.3mm |
| 固定中心 | :27.6mm |
| 绝缘电阻 | :1000Mohm |
| 材质 | :Stainless Steel |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| 面板开孔直径 | :18.9mm |
| Panel Thickness Max | :2.64mm |
| Weight (kg) | 0.0038 |
| Tariff No. | 85365007 |
| 额定电压 - AC | 250V |
| 电气寿命 | 35,000 Cycles |
| 工作温度 | -20°C ~ 70°C |
| 面板开孔尺寸 | Circular - 18.90mm Dia |
| 机械寿命 | 250,000 Cycles |
| 类型 | Vandal Resistant |
| 封装 | Tray |
| 标准包装 | 25 |
| 电路 | SPDT |
| 额定电压 - DC | 28V |
| 安装类型 | Panel Mount, Rear |
| 颜色 - 致动器/帽 | Silver |
| 执行器类型 | Round, Button |
| 其他名称 | 708-1310 |
| RoHS指令 | Lead free / RoHS Compliant |
| ActuatorType | RoundFlush |
| BodyStyle | Micro |
| ContactForm | SPST |
| Current,Rating | 5Amps |
| DielectricStrength | >2kV |
| MountingHoleSize | 18.9mm |
| MountingType | Panel |
| NumberofPoles | 1 |
| 操作 | Momentary |
| SpecialFeatures | VandalResistant,ProminentButton |
| 端子 | SolderLugs |
| Voltage,Rating | 250VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
