Bulgin

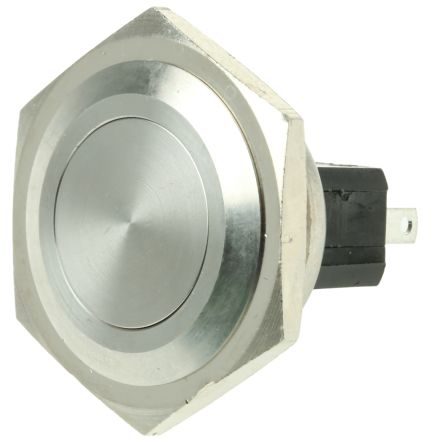

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Button |
| 联系配置 | SP |
| 触点额定电流 | 5 A @ 250 V ac |
| 触点材料 | Fine Silver |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 安装类型 | Panel Mount |
| 开关操作 | Momentary |
| 终端类型 | Solder |
| 工厂包装数量 | 25 |
| 电压额定值AC | 250 V |
| 产品种类 | Pushbutton Switches |
| 额定电流 | 5 A |
| 端子密封 | Sealed |
| 系列 | MP |
| 触点形式 | SPST |
| 开关功能 | OFF - (ON) |
| 端接类型 | Solder Pin |
| 安装风格 | Through Hole |
| 外壳材料 | Stainless Steel |
| 触点电镀 | Silver |
| 执行器 | Round |
| RoHS | RoHS Compliant |
| ActuatorType | RoundFlush |
| BodyStyle | Micro |
| ContactForm | SPST |
| Current,Rating | 5Amps |
| DielectricStrength | >2kV |
| ElectricalLife | 35000(Min.) |
| Material,Contact | FineSilver |
| Material,Terminal | Brass,TinPlated |
| MechanicalLife | 1000000(Min.) |
| MountingHoleSize | 25.8mm |
| MountingType | Panel |
| NumberofPoles | 1 |
| 操作 | Momentary |
| Resistance,Insulation | >10^3Megohms |
| SpecialFeatures | VandalResistant,LowProfile |
| Temperature,Operating | -20to+70°C |
| 端子 | SolderLugs |
| 类型 | Pushbutton |
| Voltage,Rating | 250VAC |
| RoHS指令 | RoHS Compliant Part |
| 联系方式 | 1 make contact + 1 break contact |
| 额定电流 | 5 A |
| 额定电压 | 250 |
| Flush-mounted ø | 25.8 |
| Termination type | Soldering Connection |
| Temperature range | -20...+70 °C |
| Switching type | Momentary function |
| Protection rating | IP 40 |
| Contact material | Ag |
| 面板切口直径 | 25.8mm |
| 开关操作 | 瞬间 |
| 最高工作温度 | +70°C |
| 触点配置 | SP |
| 安装类型 | 面板安装 |
| 触点材料 | 纯银 |
| 工作温度范围 | -20 → +70°C |
| 最低工作温度 | -20°C |
| 执行器类型 | 平齐 |
| Board Level Components | Y |
| 触点额定电流 | 5 A @ 250 V 交流 |
| 接端类型 | 焊接 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
