Bulgin

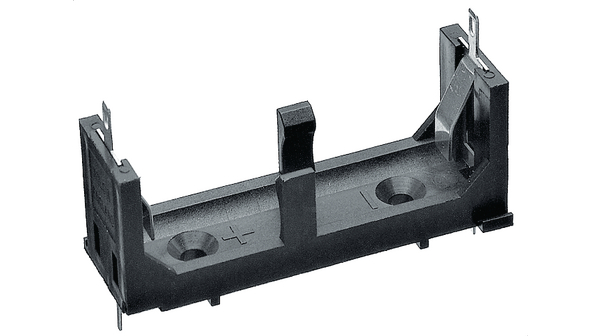

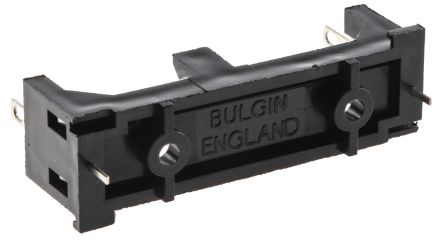

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Battery Holders, Snaps & Contacts |
| RoHS | RoHS Compliant |
| 产品 | Battery Enclosures |
| 电池尺寸 | AAA |
| 电池数量 | 1 |
| 颜色 | Red |
| 材质 | Nylon, Glass Filled |
| 安装风格 | PC/Base Mount |
| 触点电镀 | Nickel Silver |
| 系列 | BX |
| 工厂包装数量 | 50 |
| 类型 | Battery Holders |
| 风格 | Holder (Open) |
| 安装类型 | PCB, Through Hole |
| 端接类型 | PC Pin |
| 单元数 | 1 |
| 工作温度 | -30°C ~ 70°C |
| 标准包装 | 50 |
| 板上方高度 | 0.878" (22.30mm) |
| 其他名称 | 708-1407 |
| 电池类型，功能 | Cylindrical, Holder |
| RoHS指令 | Lead free / RoHS Compliant |
| 阀体材质 | Glass Filled Nylon |
| 外形尺寸 | 52.3 x 13.5 x 15.2mm |
| 对于电池尺寸 | AAA |
| 安装 | PCB |
| 终端触点材料 | Nickel Silver |
| 终端触点类型 | Leaf Spring |
| Battery Sizes Accepted | :- |
| No. of Batteries | :1 |
| Battery Holder Mount | :Through Hole |
| Battery Terminals | :PCB Pins |
| SVHC | :No SVHC (19-Dec-2012) |
| 附件类型 | :Battery Holder |
| 颜色 | :Black |
| 额定电流 | :20A |
| 外部深度 | :52.4mm |
| External Length / Height | :17.1mm |
| 外宽 | :13.5mm |
| 适用于 | :AAA Size Batteries |
| 身高 | :17.1mm |
| No. of Cells | :1 |
| 终端类型 | :Solder Lug |
| 端接方式 | :Through Hole |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| Leads | soldering lugs |
| Flammability rating | UL94V-0 |
| Battery size | AAA, R3 |
| Multiplicity | 1 |
| Body material | polyamide |
| Gross weight | 0.01 kg |
| Operating temperature | -30...70°C |
| Battery accessory type | holder |
| Number of batteries | 1 |
| Collective package [pcs] | 50 |
| spg | 50 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
