Bulgin
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Battery Holders, Snaps & Contacts |
| RoHS | RoHS Compliant |
| 产品 | Battery Holders |
| 电池尺寸 | 9 V |
| 电池数量 | 1 |
| 端接类型 | Solder Tabs |
| 材质 | Nylon, Glass Filled |
| 安装风格 | Flange Panel |
| 触点电镀 | Tin |
| 外形尺寸 | 60 mm x 29 mm |
| 系列 | BX |
| 工厂包装数量 | 50 |
| 类型 | Battery Holder |
| 风格 | Holder (Covered) |
| 安装类型 | Panel Mount |
| 单元数 | 1 |
| 工作温度 | -30°C ~ 70°C |
| 标准包装 | 50 |
| 其他名称 | 708-1403 |
| 电池类型，功能 | 9V, Holder |
| RoHS指令 | Lead free / RoHS Compliant |
| 阀体材质 | Glass Filled Nylon |
| 对于电池尺寸 | 1 x PP3 |
| 安装 | Panel |
| 安装法兰尺寸 | 53 x 29mm |
| 终端触点材料 | Phosphor Bronze |
| 终端触点类型 | Solder Tag |
| Battery Sizes Accepted | :PP3 |
| No. of Batteries | :1 |
| Battery Holder Mount | :Panel |
| Battery Terminals | :Solder Tab |
| Behind Panel Depth | :54mm |
| 颜色 | :Black |
| Weight (kg) | 0.024 |
| Tariff No. | 85369010 |
| Material,Body | PhospherBronze |
| MountingType | PanelMount |
| NumberofBatteries | 1 |
| Plating,Body | Tin |
| Size,ofAcceptedBattery | PP3(6R61) |
| TerminalType | SolderLug |
| Leads | soldering lugs |
| Flammability rating | UL94V-0 |
| Battery size | 6F22 |
| Mounting hole diameter | 3.2mm |
| 安装 | on panel |
| Body material | polyamide |
| Gross weight | 0.03 kg |
| Operating temperature | -30...70°C |
| Multiplicity | 1 |

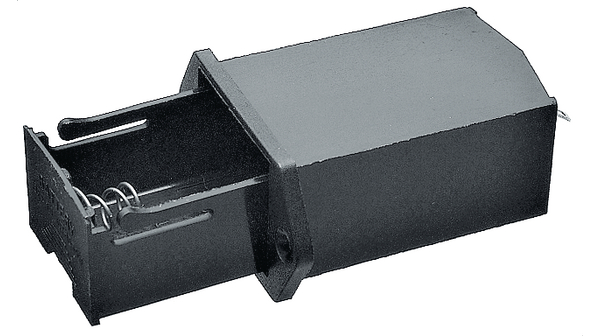

| Battery accessory type | drawer holder |
| Number of batteries | 1 |
| Collective package [pcs] | 50 |
| Mounting holes pitch | 43mm |
| spg | 50 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
