Bulgin

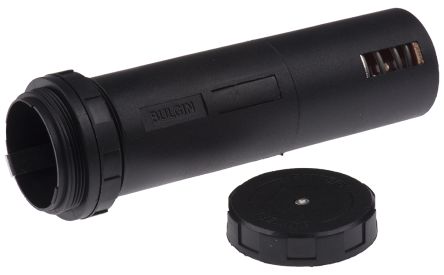

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Battery Holders, Snaps & Contacts |
| RoHS | RoHS Compliant |
| 产品 | Battery Holders |
| 电池尺寸 | C |
| 电池数量 | 2 |
| 端接类型 | Solder Tabs |
| 材质 | Nylon, Glass Filled |
| 安装风格 | Flange Panel |
| 触点电镀 | Tin |
| 外形尺寸 | 118.6 mm |
| 系列 | BX |
| 工厂包装数量 | 50 |
| 类型 | Battery Holder |
| 风格 | Holder (Covered) |
| 安装类型 | Panel Mount |
| 单元数 | 2 |
| 工作温度 | -30°C ~ 70°C |
| 标准包装 | 50 |
| 电池类型，功能 | Cylindrical, Holder |
| RoHS指令 | Lead free / RoHS Compliant |
| 阀体材质 | Glass Filled Nylon, Nylon |
| 对于电池尺寸 | 2 x C |
| 安装 | Panel |
| 终端触点材料 | Brass & Nickel Silver |
| 终端触点类型 | Solder Tag |
| Battery Sizes Accepted | :- |
| No. of Batteries | :2 |
| Battery Holder Mount | :Panel |
| Battery Terminals | :Solder Tab |
| SVHC | :No SVHC (19-Dec-2012) |
| 附件类型 | :Battery Holder |
| Bezel Diameter | :38.1mm |
| 适用于 | :C Size Batteries |
| No. of Cells | :2 |
| 终端类型 | :Solder Lug |
| Weight (kg) | 0.042 |
| Tariff No. | 85369010 |
| Leads | soldering lugs |
| Flammability rating | UL94V-0 |
| Battery size | C, R14 |
| Multiplicity | 1 |
| 颜色 | black |
| Body material | polyamide |
| Gross weight | 0.01 g |
| Operating temperature | -30...70°C |
| Battery accessory type | holder |
| Number of batteries | 2 |
| Collective package [pcs] | 10 |
| spg | 10 |
