Bulgin

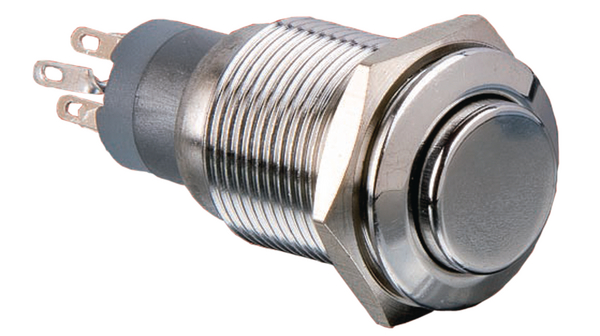

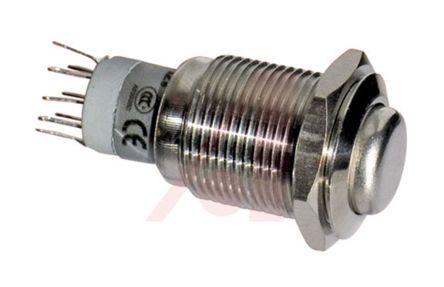

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Tray |
| 类型 | Standard |
| 开关功能 | On-Mom |
| 额定电流 | 3A (AC) |
| 面板开孔尺寸 | Circular - 16.20mm Dia |
| 安装类型 | Panel Mount, Front |
| 额定电压 - AC | 250V |
| 电气寿命 | 30,000 Cycles |
| 端接类型 | Solder Lug |
| 颜色 - 致动器/帽 | Silver |
| 工作温度 | -20°C ~ 55°C |
| 执行器类型 | Round, Button |
| 标准包装 | 40 |
| 机械寿命 | 200,000 Cycles |
| 电路 | DPDT |
| RoHS指令 | Compliant |
| 工厂包装数量 | 40 |
| 产品种类 | Pushbutton Switches |
| 触点形式 | DPST |
| 安装风格 | Through Hole |
| 外壳材料 | Stainless Steel |
| 执行器 | Round |
| RoHS | RoHS Compliant |
| 联系配置 | :DPDT-CO |
| 开关操作 | :Off-(On) |
| Contact Current Max | :3A |
| Actuator / Cap Colour | :Chrome |
| Switch Terminals | :Solder |
| SVHC | :No SVHC (19-Dec-2012) |
| 驱动类型 | :Dome |
| 执行器风格 | :Dome |
| Bezel Diameter | :18mm |
| Contact Current @ Contact Voltage AC Max | :3A |
| Contact Current AC Max | :3A |
| 接触电阻 | :50mohm |
| Contact Voltage AC Nom | :250V |
| Dielectric Strength VAC | :2000VAC |
| 外部深度 | :29.5mm |
| 绝缘电阻 | :1000Mohm |
| Insulation Resistance Voltage | :500VDC |
| 材质 | :Stainless Steel |
| No. of Electrical Operations | :30000 |
| No. of Mechanical Operations | :200000 |
| Operating Temperature Max | :55°C |
| Operating Temperature Min | :-20°C |
| 面板开孔直径 | :16mm |
| Panel Thickness Max | :10mm |
| 系列 | :Prominent Button |
| Weight (kg) | 0.654 |
| Tariff No. | 85365080 |
