Neutrik

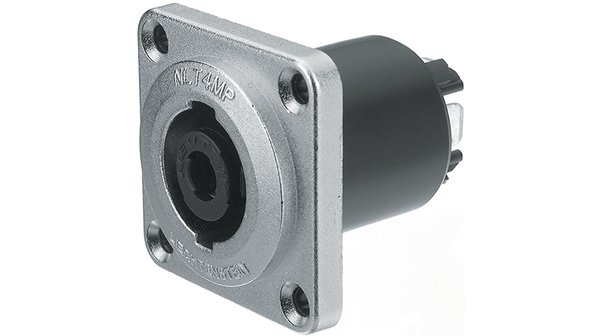

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工厂包装数量 | 10 |
| 产品种类 | Loudspeaker Connectors |
| 额定电流 | 40 A |
| 额定电压 | 250 V |
| 颜色 | Black |
| 性别 | Male |
| 单位重量 | 1.763698 oz |
| 标准 | Speakon, HPC |
| 安装风格 | Chassis (Panel) |
| 位置/触点数 | 4 |
| 触点电镀 | Silver |
| RoHS | RoHS Compliant |
| 触点材料 | Spring Copper |
| 系列 | :speakON STX |
| No. of Contacts | :4 |
| Connector Colour | :- |
| 接触端子 | :Quick Connect |
| Connector Mounting | :Chassis |
| Connector Body Material | :Metal |
| SVHC | :No SVHC (20-Jun-2013) |
| Connector Mounting Orientation | :Panel |
| 端接方式 | :Solder |
| Weight (kg) | 0.05254 |
| Tariff No. | 85369010 |
| AgencyApprovals | UL,CSA |
| Angle | Straight |
| Brand/Series | STXSeries |
| CableSize | 9to16mm |
| ContactPlating | Silver |
| CurrentRating | 40A |
| Current,Rating | 40A(Continuous),50A(Audiosignal) |
| FlammabilityRating | UL94HB |
| Flammability,Housing | UL94HB |
| InsulationType | Insulated |
| Material,Body | ZincDie-Cast |
| Material,Contact | SpringCopper |
| Material,Housing | ZincDiecast |
| MountingType | Panel |
| NumberofContacts | 4 |
| NumberofPoles | 4 |
| PrimaryType | Speaker |
| Resistance,Insulation | >10Gigaohms |
| TemperatureRange | -30to+80°C |
| 端子 | Thru-Hole |
| 类型 | Plug |
| Voltage,Rating | 250V |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
