3M Electronic Solutions Division

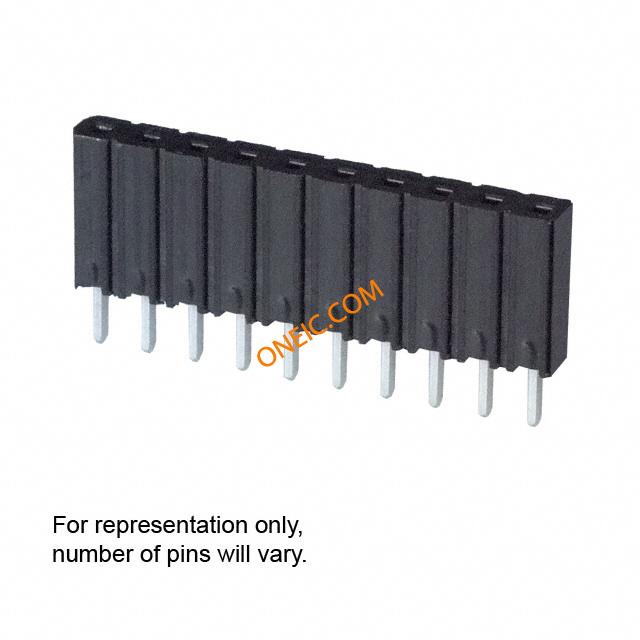

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Through Hole |
| 颜色 | Black |
| 标准包装 | 300 |
| 连接器类型 | Receptacle |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 行数 | 1 |

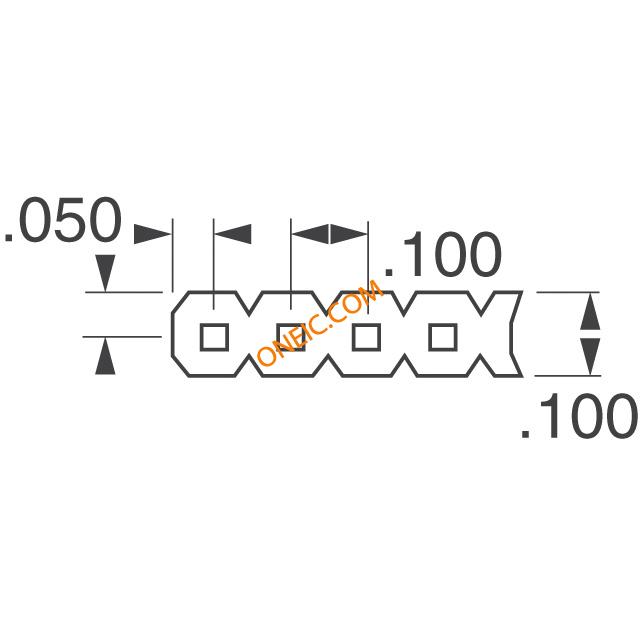

| 间距 | 0.100" (2.54mm) |
| 触点类型 | Forked |
| 端子 | Solder |
| Contact Finish Thickness | 10µin (0.25µm) |
| 位置数 | 36 |
| 加载位置的数目 | All |
| 工厂包装数量 | 300 |
| 安装方式 | Straight |
| 产品种类 | Headers & Wire Housings |
| 额定电流 | 1 A |
| 外壳材料 | Polyester |
| 系列 | 929 |
| 端接类型 | Through Hole |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 36 |
| 触点电镀 | Gold |
| 零件号别名 | 05111166504 80000908907 |
| 产品类型 | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| 触点材料 | Copper Alloy |
| 节距 | :2.54mm |
| No. of Rows | :1 |
| No. of Contacts | :36 |
| 接触端子 | :Through Hole Vertical |
| Weight (kg) | 0 |
| Tariff No. | 85366930 |
| AgencyApprovals | cUL,UL |
| Angle | Straight |
| Brand/Series | 929Series |
| ContactPlating | Gold |
| Current,Rating | 1A |
| Finish,HousingTest | Tin-Lead |
| FlammabilityRating | UL94V-0 |
| Length,Overall | 1.8" |
| Material,Contact | CopperAlloy |
| Material,Dielectric | PBT |
| MountingHoleSize | 0.04" |
| NumberofContacts | 36 |
| NumberofRows | 1 |
| PinSpacing | 0.1" |
| PrimaryType | Boardmount |
| Temperature,Operating | -40to+105°C |
| 类型 | PCBSocket |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
