3M Electronic Solutions Division

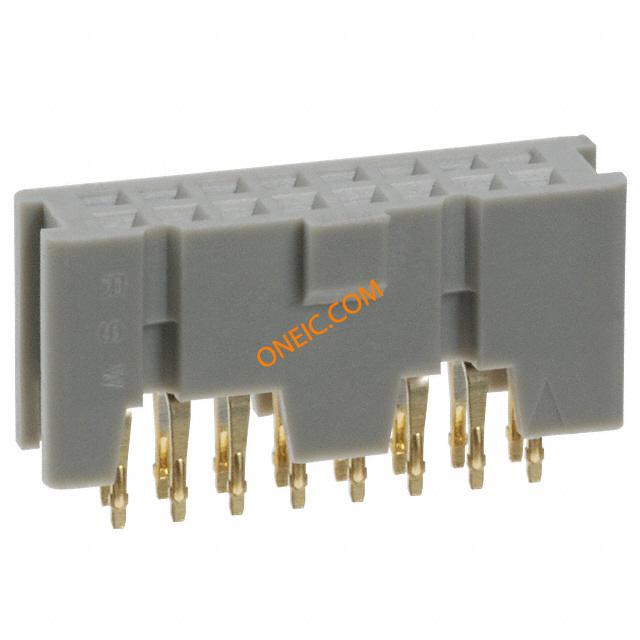

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 匹配代码 | 85164500PL |
| 锁存器（ IDC ） | NO |
| Oper.temperatur | -55 TO 105°C |
| 定位 | STRAIGHT |
| 联系人节数 | 16 |
| 单位包 | 100 |
| 标准的提前期 | 13 weeks |
| 最小起订量 | 100 |
| 外壳材质 | PBT |
| 额定电压 | 1000V |
| 联系间距 | 2.54mm |
| 认证 | UL E68080 |
| 行数 | 2 |
| 接触镀层 | FLASHGOLD |
| 系列 | 8500 |
| 额定电流 | 1A |
| 插拔次数 | 1 |
| 应力消除 | NO |
| 无铅Defin | RoHS-conform |
| 产品特点 | Polarizing Key |
| 安装类型 | Through Hole |
| 颜色 | Gray |
| 标准包装 | 100 |
| 连接器类型 | Receptacle |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 行数 | 2 |
| 间距 | 0.100" (2.54mm) |
| 触点类型 | Female Socket |
| 端子 | Press-Fit |
| Contact Finish Thickness | 12µin (0.30µm) |
| 行间距 | 0.100" (2.54mm) |
| 位置数 | 16 |
| 加载位置的数目 | All |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Straight |
| CAD绘图 | 3D CAD Model |
| 触点材料 | Copper Alloy |
| 额定电流 | 1A |
| 触点数 | 16 |
| 端接方式 | Solder |
| 类型 | Socket Strip |
| 工厂包装数量 | 100 |
| 产品种类 | Headers & Wire Housings |
| 外壳材料 | Polyester |
| 额定电压 | 1 kV |
| 端接类型 | Through Hole |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 16 |
| 零件号别名 | 54745226286 JE150318739 |
| 产品类型 | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| 节距 | :2.54mm |
| No. of Rows | :2 |
| No. of Contacts | :16 |
| 性别 | :Receptacle |
| 接触端子 | :Through Hole Vertical |
| 触点电镀 | :Gold |
| 颜色 | :Grey |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :1000Mohm |
| 引线间距 | :2.54mm |
| 材质 | :Glass Filled Polyester |
| No. of Mating Cycles | :200 |
| No. of Poles | :16 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Polarisation Type | :Bump |
| 工作电压 | :350V |
| Weight (kg) | 0.002 |
| Tariff No. | 85369010 |
| Electrical mounting | THT |
| 连接器 | socket |
| Maximum current | 3A |
| Multiplicity | 1 |
| Spatial orientation | straight |
| Connector type | female |
| Gross weight | 3.54 g |
| Operating temperature | -55...105°C |
| 针数 | 16 |
| spg | 100 |
| Collective package [pcs] | 100 |
| Type of pin configuration | 2x8 |
| Contacts pitch | 2.54mm |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
