3M Electronic Solutions Division

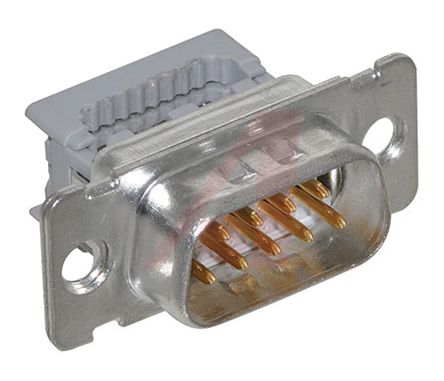

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | D-Sub Standard Connectors |
| RoHS | RoHS Compliant |
| 位置/触点数 | 9 |
| 行数 | 2 |
| 性别 | Male |
| 安装风格 | Wire |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold |
| 额定电流 | 1 A |
| 系列 | 8200 |
| 外壳材质 | Steel |
| 外壳电镀 | Tin |
| 工厂包装数量 | 100 |
| 零件号别名 | 05113843268 DE610012127 |
| 外壳尺寸，连接器布局 | 1 (DE, E) |
| 封装 | Tray |
| 法兰特点 | Housing/Shell (Unthreaded) |
| 产品特点 | Feed Through, Grounding Indents |
| 安装类型 | Panel Mount |
| 颜色 | Gray |
| 标准包装 | 100 |
| 连接器类型 | Plug, Male Pins |
| 外壳材料，表面处理 | Steel, Tin Plated |
| 触点表面涂层 | Gold |
| 外壳材料 | Polyester, Glass Filled |
| 工作温度 | -55°C ~ 105°C |
| 端子 | IDC, Ribbon Cable |
| 触点类型 | Signal |
| Contact Finish Thickness | 30µin (0.76µm) |
| 连接器类型 | D-Sub |
| 位置数 | 9 |
| RoHS指令 | Lead free / RoHS Compliant |
| 单位重量 | 1.532 lbs |
| 产品范围 | :3M - 8200 Series |
| No. of Contacts | :9 |
| D Sub Shell Size | :DE |
| Connector Body Material | :Metal |
| 接触端子 | :IDC / IDT |
| 颜色 | :Grey |
| 可燃性等级 | :UL94V-0 |
| 材质 | :Steel |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Wire Size AWG Max | :28AWG |
| Wire Size AWG Min | :26AWG |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| AgencyApprovals | cUL,UL |
| Angle | Straight |
| Brand/Series | 8200 |
| ContactPlating | Gold(30)overNickel |
| Current,Rating | 1A |
| Finish,Housing | Tin |
| FlammabilityRating | UL94V-0 |
| Material,Contact | CopperAlloy |
| Material,Dielectric | PBT |
| Material,Housing | Steel |
| NumberofContacts | 9 |
| NumberofRows | 2 |
| PrimaryType | D-Subminiature |
| SpecialFeatures | StrainRelief |
| 类型 | CablePlug |
| Wire,AWG | 28-26 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
