3M Electronic Solutions Division

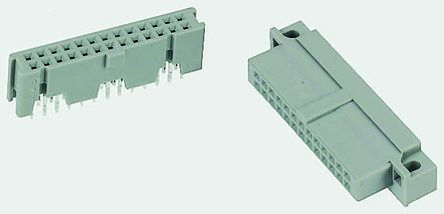

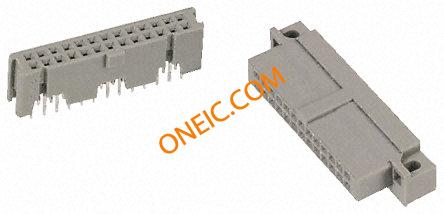

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品特点 | Polarizing Key |
| 安装类型 | Through Hole, Right Angle |
| 颜色 | Gray |
| 标准包装 | 100 |
| 连接器类型 | Receptacle |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 行数 | 2 |
| 间距 | 0.100" (2.54mm) |
| 触点类型 | Female Socket |
| 端子 | Solder |
| Contact Finish Thickness | 30µin (0.76µm) |
| 行间距 | 0.100" (2.54mm) |
| 位置数 | 50 |
| 加载位置的数目 | All |
| 身体上的取向 | Right Angle |
| 触点材料 | Copper Alloy |
| 额定电流 | 1A |
| 触点数 | 50 |
| 端接方式 | Solder |
| 类型 | Board to Board |
| RoHS指令 | Compliant |
| 工厂包装数量 | 100 |
| 产品种类 | Headers & Wire Housings |
| 系列 | 5100 |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 50 |
| 触点电镀 | Gold |
| 零件号别名 | 54745251422 JE150344230 |
| 产品类型 | Socket Headers |
| RoHS | RoHS Compliant |
| 节距 | :2.54mm |
| No. of Rows | :2 |
| No. of Contacts | :50 |
| 性别 | :Receptacle |
| 接触端子 | :Through Hole Right Angle |
| 颜色 | :Grey |
| 绝缘电阻 | :1000Mohm |
| 引线间距 | :2.54mm |
| No. of Mating Cycles | :200 |
| No. of Poles | :50 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| Polarisation Type | :Bump |
| 工作电压 | :350V |
| Weight (kg) | 0.019 |
| Tariff No. | 85369010 |
