3M

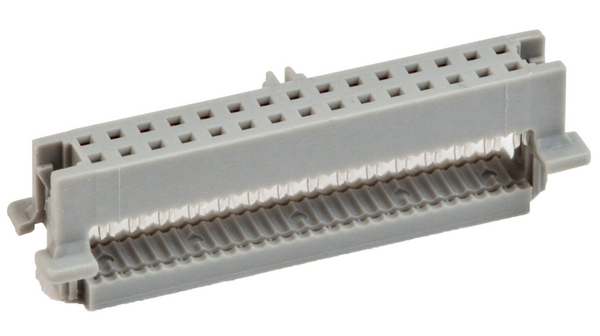

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 导线类型 | Ribbon Cable |
| 产品特点 | Feed Through, Polarizing Key |
| 安装类型 | Free Hanging (In-Line) |
| 电缆端接 | IDC |
| 间距 | 0.050" (1.27mm) |
| 连接器类型 | Receptacle |
| 触点表面涂层 | Gold |
| 封装 | Tray |
| 线规 | 30 AWG |
| 行数 | 2 |
| 标准包装 | 500 |
| 触点类型 | Female Socket |
| Contact Finish Thickness | Flash |
| 行间距 | 0.050" (1.27mm) |
| 位置数 | 16 |
| RoHS指令 | Lead free / RoHS Compliant |
| Contact coating | Flash gold |
| 系列 | 451 |
| 额定电流 | 1 A |
| 额定电压 | 125 |
| 外壳材料 | Polybutylene terephthalate (PBT) |
| Poles | 16 |
| Ribbon cable connection | AWG 30, Pitch 0.635 mm |
| Temperature range | -55...+105 °C |
| Contact material | BeCu |
| Gender of contacts | Female |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
