3M

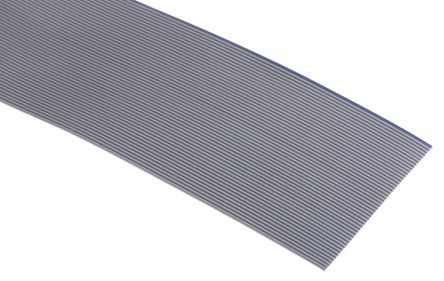

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 美国线规 | 30 |
| 电缆形状 | Ribbon |
| 电容 | 54.12 pF/m |
| 特性阻抗 | 90 Ω |
| 导体绞合线类型 | Solid |
| 核心股 | 1/0.254 mm |
| 高密度 | Yes |
| 最高工作温度 | +105°C |
| 最低工作温度 | -40°C |
| 股数 | 1 |
| 方法数目 | 50 |
| 间距 | 0.64mm |
| 卷长 | 5m |
| 屏蔽/非屏蔽 | Unscreened |
| 护套颜色 | Grey |
| 股尺寸 | 0.254 mm |
| 额定电压 | 150 V |
| 宽度 | 31.75 mm |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :50 |
| 节距 | :0.635mm |
| Conductor Size AWG | :30AWG |
| Conductor Area CSA | :0.051mm² |
| 护套材质 | :TPE (Thermoplastic Elastomer) |
| Jacket Colour | :Grey |
| Approval Bodies | :UL |
| Approval Category | :Style 20297 |
| 电缆类型 | :Flat (Ribbon) |
| 颜色 | :Grey |
| Conductor Make-up | :1/30AWG |
| 导体材料 | :Copper |
| 额定电流 | :1A |
| 可燃性等级 | :VW-1 |
| 阻抗 | :90ohm |
| 电感 | :0.43µH/m |
| No. of Max Strands x Strand Size | :1 x 0.255mm |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-40°C |
| Weight (kg) | 1.28 |
| Tariff No. | 85444995 |
| RoHS指令 | RoHS Compliant Part |
