3M Electronic Solutions Division

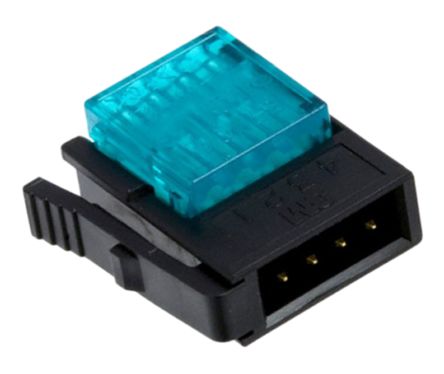

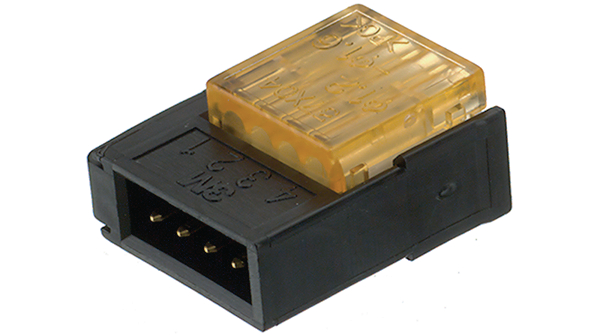

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 导线类型 | Discrete |
| 产品特点 | Closed End |
| 安装类型 | Free Hanging (In-Line) |
| 电缆端接 | Spring Clamp |
| 间距 | 0.079" (2.00mm) |
| 连接器类型 | Plug |
| 触点表面涂层 | Gold |
| 封装 | Bulk |
| 线规 | 20-24 AWG |
| 行数 | 1 |
| 紧固型 | Latch Lock |
| 标准包装 | 100 |
| 触点类型 | Male Pin |
| Contact Finish Thickness | 8µin (0.20µm) |
| 位置数 | 4 |
| 颜色 | Black |
| 身体上的取向 | Straight |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold over Nickel |
| 额定电流 | 3A |
| 性别 | Male |
| 外壳材料 | Thermoplastic |
| 最高工作温度 | +85°C |
| 最低工作温度 | -20°C |
| 触点数 | 4 |
| 端接方式 | IDT |
| 额定电压 | 32 V |
| RoHS指令 | Compliant |
| 产品种类 | Headers & Wire Housings |
| 系列 | 371 |
| 端接类型 | IDC |
| 联系人性别 | Pin (Male) |
| 安装风格 | Cable |
| 位置/触点数 | 4 |
| 产品类型 | Receptacles / Sockets - Housings |
| 零件号别名 | 05111990418 JE150376505 |
| 闭锁类型 | Latched |
| 类型 | Ribbon Cable |
| RoHS | RoHS Compliant |
| 产品范围 | :3M - Mini-Clamp II 371 Series |
| 接触端子 | :IDC / IDT |
| No. of Contacts | :4 |
| No. of Rows | :1 |
| 节距 | :2mm |
| 颜色 | :Green |
| Connector Mounting Orientation | :Cable |
| 可燃性等级 | :UL 94V-0 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-20°C |
| Voltage Rating V AC | :32V |
| Wire Size AWG Max | :20AWG |
| Wire Size AWG Min | :26AWG |
| 耐压 | :1000V |
| Weight (kg) | 0.02 |
| Tariff No. | 85369010 |
