3M

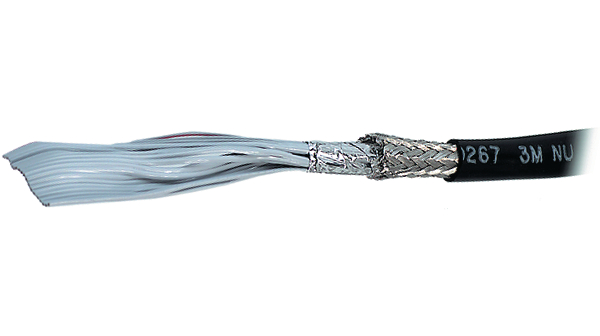

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| No. of Conductors | :60 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| Conductor Area CSA | :0.072mm² |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| Jacket Colour | :Black |
| 额定电压 | :300V |
| 电缆类型 | :Shielded Round to Flat |
| Cable UL Style Number | :UL20267 |
| 电容 | :90.9pF/m |
| 颜色 | :Grey |
| Conductor Make-up | :7/36AWG |
| 导体材料 | :Copper |
| 阻抗 | :62ohm |
| 电感 | :0.43µH |
| 绝缘电阻 | :10000Mohm |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| Operating Temperature Max | :80°C |
| Screen Type Primary | :Aluminised Polyester Tape |
| Screen Type, Secondary | :Tinned copper braid |
| Secondary Insulation Colour | :Black |
| Secondary Insulation Material | :PVC |
| Weight (kg) | 0.277 |
| Tariff No. | 85444995 |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| CableType | Multiconductor |
| Color,Jacket | Black |
| Diameter,Outer,Nominal | 0.51Inch |
| InsulationMaterial | PVC |
| JacketMaterial | PVC |
| Length,Cable | 100Feet |
| Material,Conductor | TinnedStrandedCopper |
| NumberofConductors | 60on0.05inchcentersmassterminatestoinsulationdisplacementconnectors. |
| 屏蔽 | Braidandfoil |
| 标准 | ULlistedforUSAandCanadianmarkets.NECarticle725(CL2) |
| 搁浅 | 7x26 |
| Temperature,Rating | USA:–20°Cto105°C,Canada:–20°Cto80°C |
| 电压 | USA:N.E.C.725,CL2orAWM;300V.Canada:300VEU: |
| Wire,AWG | 28 |
| RoHS指令 | RoHS Compliant Part |
