3m interconnect solutions

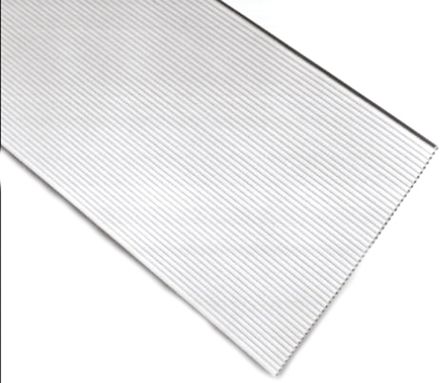

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Flat Cable |
| 导线数 | 26 |
| 电缆间隔2.54mm | 1.27 mm |
| 尺寸 | 28 AWG |
| 导体材料 | Silver Plated Copper |
| 标准包装 | Cable Rolls / Shrink Tubing |
| No. of Conductors | :26 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| 护套材质 | :FEP (Fluorinated Ethylene Propylene) |
| Jacket Colour | :Blue |
| 额定电压 | :50V |
| 电缆类型 | :Flat (Ribbon) |
| 电容 | :32.5pF/m |
| 阻抗 | :131ohm |
| 电感 | :0.56µH/m |
| Operating Temperature Max | :200°C |
| Operating Temperature Min | :-55°C |
| Velocity of Propagation (%) | :79% |
| Weight (kg) | 0.25 |
| Tariff No. | 85444995 |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
