3M

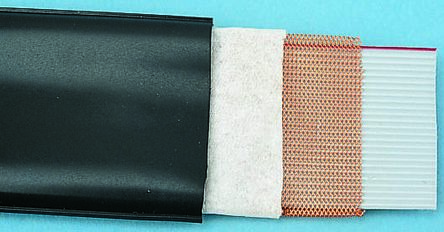

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 美国线规 | 28 |
| 电缆形状 | Ribbon |
| 电容 | 70.52 pF/m |
| 特性阻抗 | 119 Ω |
| 导体绞合线类型 | Stranded |
| 核心股 | 7/0.127 mm |
| 股数 | 7 |
| 方法数目 | 50 |
| 间距 | 1.27mm |
| 卷长 | 5m |
| 屏蔽/非屏蔽 | Screened |
| 护套颜色 | Black |
| 股尺寸 | 0.127 mm |
| 额定电压 | 300 V |
| 宽度 | 66.8 mm |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| No. of Conductors | :50 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| Jacket Colour | :Black |
| SVHC | :No SVHC (19-Dec-2012) |
| Approval Bodies | :UL |
| Approval Category | :Style 20879 |
| 电缆类型 | :Shielded Flat (Ribbon) |
| 颜色 | :Grey |
| Conductor Make-up | :7/36AWG |
| 导体材料 | :Copper |
| 额定电流 | :1A |
| 可燃性等级 | :CL2 |
| 阻抗 | :119ohm |
| 电感 | :0.62µH/m |
| No. of Max Strands x Strand Size | :7 x 0.127mm |
| Operating Temperature Max | :80°C |
| Operating Temperature Min | :-20°C |
| Weight (kg) | 3.7 |
| Tariff No. | 85444995 |
| CableType | Flat |
| Color,Jacket | Black |
| Material,Conductor | TinnedCopper |
| Material,Insulation | Polyvinylchloride |
| Material,Jacket | Polyvinylchloride |
| Material,Shield | ExpandedCopper |
| NumberofConductors | 50 |
| 标准 | ULCL2,ULAWM20879,cULAWMIIA/BFT1 |
| 搁浅 | 7×36 |
| Temperature,Rating | -20to+80°C |
| Wire,AWG | 28 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
