3M

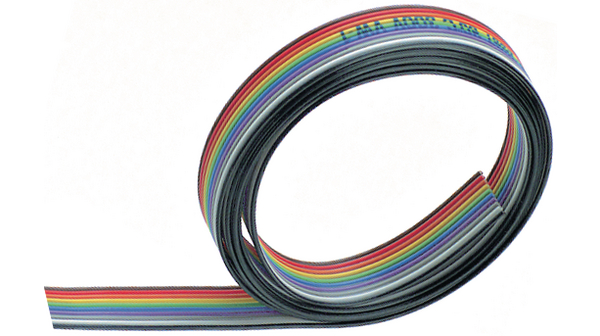

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 美国线规 | 28 |
| 电缆形状 | Ribbon |
| 电容 | 46.248 pF/m |
| 特性阻抗 | 105 Ω |
| 导体绞合线类型 | Stranded |
| 核心股 | 7/0.127 mm |
| 股数 | 7 |
| 方法数目 | 37 |
| 间距 | 1.27mm |
| 卷长 | 30m |
| 屏蔽/非屏蔽 | Unscreened |
| 护套颜色 | Black, Blue, Brown, Green, Grey, Orange, Purple, Red, White, Yellow |
| 股尺寸 | 0.127 mm |
| 额定电压 | 300 V |
| 宽度 | 46.99 mm |
| No. of Conductors | :37 |
| 节距 | :1.27mm |
| Conductor Size AWG | :28AWG |
| 护套材质 | :PVC (Polyvinyl Chloride) |
| Jacket Colour | :Multiple |
| Weight (kg) | 0.0774 |
| Tariff No. | 85444995 |
| CableType | Flat |
| Material,Conductor | TinnedCopper |
| Material,Insulation | Polyvinylchloride |
| NumberofConductors | 37Cond |
| 标准 | ULAWM20462VW1,cULAWMIAFT1 |
| 搁浅 | 7×36 |
| Temperature,Rating | -20to+105°C |
| Wire,AWG | 28 |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
