3m interconnect solutions

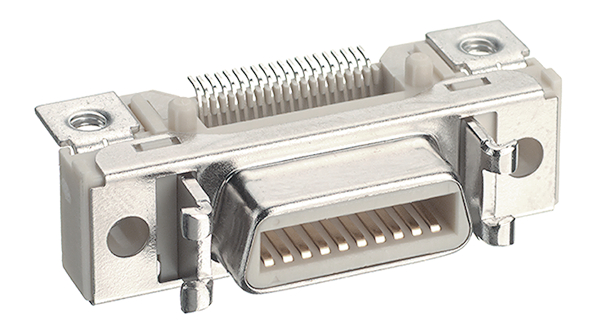

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | SCSI |
| 性别 | RCP |
| 间距 | 0.64 mm |
| 端接方式 | Solder |
| 安装 | Surface Mount |
| 身体上的取向 | Right Angle |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Micro-D Connectors |
| RoHS | RoHS Compliant |
| 位置/触点数 | 26 |
| 行数 | 2 |
| 安装风格 | SMD/SMT |
| 安装方式 | Vertical |
| 端接类型 | Solder |
| 触点材料 | Copper Alloy |
| 触点电镀 | Tin Lead |
| 额定电流 | 1 A |
| 封装 | Bulk |
| 工厂包装数量 | 100 |
| 零件号别名 | 54745226199 JE150317806 |
| 法兰特点 | Insert, Threaded (M2.5); Latchblocks |
| 产品特点 | Board Guide, Shielded |
| 安装类型 | Surface Mount, Right Angle |
| 连接器类型 | Receptacle |
| 触点表面涂层 | Gold |
| 端子 | Solder |
| Contact Finish Thickness | 20µin (0.51µm) |
| 连接器类型 | Outer Shroud Contacts |
| 位置数 | 26 |
| RoHS指令 | Lead free / RoHS Compliant |
| 工作温度范围 | -55C to 105C |
| 端口数 | 1 Port |
| 额定电流（最大值） | 1 A |
| 外壳材料 | Steel |
| 工作温度最高摄氏度。 | 105C |
| 触点数 | 26 POS |
| 工作温度敏度。 | -55C |
| 产品长度（mm ） | 38.2 mm |
| 产品厚度（毫米） | 15.15 mm |
| 产品高度（mm ） | 9.35 mm |
| 端子数 | 26 |
| 间距（mm） | 0.64 mm |
| 删除 | Compliant |
| No. of Contacts | :26 |
| 接触端子 | :Surface Mount Right Angle |
| Connector Mounting | :PCB |
| 颜色 | :Beige |
| Connector Mounting Orientation | :PCB |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :500Mohm |
| 材质 | :Steel |
| No. of Poles | :26 |
| Operating Temperature Max | :105°C |
| Operating Temperature Min | :-55°C |
| 节距 | :1.27mm |
| 耐压 | :500V |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| AgencyApprovals | cUL,UL |
| Angle | RightAngle |
| Brand/Series | 102 |
| ContactPlating | Gold |
| FlammabilityRating | UL94V-0 |
| Material,Contact | CopperAlloy |
| Material,Dielectric | PBT |
| Material,Housing | ZincAlloy |
| Material,Insert | Polyester |
| NumberofContacts | 26 |
| PrimaryType | Mini-D-Ribbon |
| SpecialFeatures | Shielded |
| 标准 | UL94V-0 |
| Electrical mounting | SMT |
| Mechanical mounting | for panel mounting |
| Body material | polyester |
| Flammability rating | UL94V-0 |
| Contact rated current | 1A |
| spg | 100 |
| Multiplicity | 1 |
| Spatial orientation | horizontal |
| Connector type | female |
| 连接器 | socket |
| Gross weight | 9.43 g |
| 测试电压 | 500V |
| Operating temperature | -55...105°C |
| 针数 | 26 |
| 接触镀层 | nickel plated, gold plated |
| Connector variant | shielded |
| 锁定系统 | lock |
| Contacts pitch | 1.27mm |
| Collective package [pcs] | 100 |
| Contact material | copper alloy |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
