vishay / semiconductor

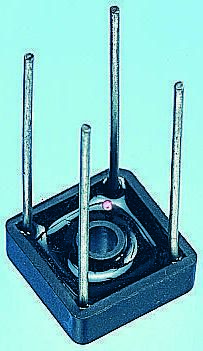

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 4D-72 |
| 配置 | Single |
| 桥型 | Single Phase |
| 峰值反向重复电压 | 200 V |
| 峰值反向电流 | 10 uA |
| 峰值平均正向电流 | 6 A |
| 峰值正向电压 | 1.2 V |
| 工作温度 | -40 to 150 °C |
| 安装 | Through Hole |
| 标准包装 | Bulk |
| 单位包 | 100 |
| 最小起订量 | 100 |
| 封装 | Bulk |
| 安装类型 | Through Hole |
| 供应商设备封装 | D-72 |
| 电压 - 峰值反向（最大） | 200V |
| 电流 - DC正向（If ） | 6A |
| 封装/外壳 | 4-Square, D-72 |
| 速度 | Standard Recovery >500ns, > 200mA (Io) |
| 二极管类型 | Single Phase |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 15.75 x 15.75 x 5.33mm |
| 身高 | 5.33mm |
| 长度 | 15.75mm |
| 最高工作温度 | +150 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | D 72 |
| 峰值不重复正向浪涌电流 | 137A |
| 峰值RMS反向电压 | 80V |
| 引脚数 | 4 |
| 宽度 | 15.75mm |
| 工厂包装数量 | 100 |
| 产品 | Single Phase Bridge |
| 产品种类 | Bridge Rectifiers |
| RoHS | RoHS Compliant By Exemption |
| 最大RMS反向电压 | 80 V |
| 最大反向漏泄电流 | 10 uA |
| 正向电压下降 | 1.2 V |
| 峰值反向电压 | 200 V |
| 安装风格 | Through Hole |
| 最大浪涌电流 | 137 A |
| 封装/外壳 | D-72 |
| No. of Phases | :Single |
| Repetitive Reverse Voltage Vrrm Max | :200V |
| Forward Current If(AV) | :6A |
| Forward Voltage VF Max | :1.2V |
| Bridge Rectifier Case Style | :KBPC |
| No. of Pins | :4 |
| Diode Mounting Type | :Through Hole |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| SVHC | :No SVHC (19-Dec-2012) |
| Body Height Max | :6.35mm |
| Case Temperature Tc | :50°C |
| Current Temperature | :50°C |
| 外部深度 | :16.7mm |
| External Length / Height | :6.6mm |
| 外宽 | :16.7mm |
| Forward Surge Current Ifsm Max | :125A |
| Junction Temperature Tj Max | :150°C |
| Junction Temperature Tj Min | :-40°C |
| 引线长度 | :22mm |
| 工作温度范围 | :-40°C to +150°C |
| Output Current Max | :6A |
| RMS Input Voltage | :80V |
| 终端类型 | :Wire lead |
| Weight (kg) | 0.004 |
| Tariff No. | 85411000 |
| 身高 | :6.35mm |
| Current - DC Forward (If) (Max) | 6A |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
