VISHAY

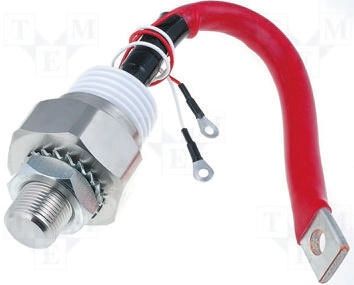

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 12 |
| 最小起订量 | 12 |
| 工厂包装数量 | 12 |
| 产品种类 | SCRs |
| 额定重复关闭状态电压VDRM | 1000 V |
| 最大栅极峰值反向电压 | 5 V |
| 安装风格 | Stud |
| 正向电压下降 | 1.35 V |
| 不重复通态电流 | 4000 A |
| 封装 | Bulk |
| 门极触发电流 | 150 mA |
| 封装/外壳 | TO-93 |
| 关闭状态漏泄电流@ VDRM IDRM | 30 mA |
| RoHS | RoHS Compliant By Exemption |
| Peak Repetitive Off-State Voltage, Vdrm | :1000V |
| Gate Trigger Current Max, Igt | :150mA |
| Current It av | :180A |
| On State RMS Current IT(rms) | :285A |
| Peak Non Rep Surge Current Itsm 50Hz | :3.8kA |
| Holding Current Max Ih | :600mA |
| Gate Trigger Voltage Max Vgt | :2.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Thyristor Case | :TO-209AB |
| No. of Pins | :4 |
| MSL | :- |
| Case Temperature Tc | :80°C |
| Current Itsm | :3800A |
| Current Temperature | :80°C |
| Itsm Frequency | :50Hz |
| Junction Temperature Tj Max | :125°C |
| Junction Temperature Tj Min | :-40°C |
| Junction to Case Thermal Resistance A | :0.15°C/W |
| 工作温度范围 | :-40°C to +125°C |
| Rate of Current Change di / dt | :300A/µs |
| Rate of Voltage Change dv / dt | :500V/µs |
| Repetitive Reverse Voltage Vrrm Max | :1000V |
| Temperature Vgt | :2.5°C |
| 端接类型 | :Quick Connect |
| 螺纹尺寸 | :3/4"16UNF |
| 晶闸管类型 | :Thyristor |
| 重量 | :280g |
| Weight (kg) | 0.28 |
| Tariff No. | 85413000 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
