VISHAY

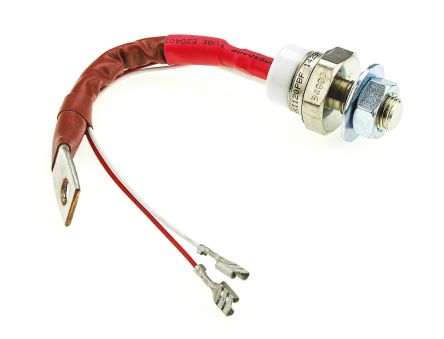

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 25 |
| 最小起订量 | 25 |
| 工厂包装数量 | 25 |
| 产品种类 | SCRs |
| 额定重复关闭状态电压VDRM | 1200 V |
| 最大栅极峰值反向电压 | 10 V |
| 安装风格 | Stud |
| 正向电压下降 | 1.57 V |
| 不重复通态电流 | 2180 A |
| 封装 | Bulk |
| 门极触发电流 | 120 mA |
| 封装/外壳 | TO-94 |
| 关闭状态漏泄电流@ VDRM IDRM | 20 mA |
| RoHS | RoHS Compliant |
| Peak Repetitive Off-State Voltage, Vdrm | :1200V |
| Gate Trigger Current Max, Igt | :150mA |
| Current It av | :130A |
| On State RMS Current IT(rms) | :220A |
| Holding Current Max Ih | :200mA |
| Gate Trigger Voltage Max Vgt | :2V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :140°C |
| MSL | :- |
| Current Itsm | :4700A |
| 外部深度 | :34mm |
| External Length / Height | :28.5mm |
| 外宽 | :94mm |
| 固定中心 | :80mm |
| 安装孔直径 | :6.5mm |
| 隔离电压 | :2500V |
| 工作温度范围 | :-40°C to +140°C |
| Repetitive Reverse Voltage Vrrm Max | :1200V |
| 螺纹尺寸 | :1/2"20UNF |
| 晶闸管类型 | :Thyristor |
| Weight (kg) | 0.25 |
| Tariff No. | 85411000 |
