Vishay / Sfernice

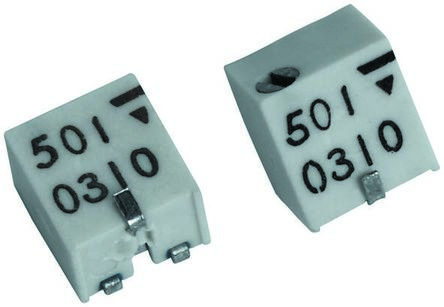

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 50 |
| 最小起订量 | 500 |
| 深度 | 3.5mm |
| 外形尺寸 | 4.8 x 3.5 x 5.1mm |
| 身高 | 5.1mm |
| 长度 | 4.8mm |
| 最高工作温度 | +125°C |
| 最大阻力 | 1mΩ |
| 最低工作温度 | -55°C |
| 安装类型 | Surface Mount |
| 圈数 | 11 |
| 额定功率 | 0.25W |
| 温度系数 | ±100ppm/°C |
| 端接类型 | Gull Wing |
| 容差 | ±10% |
| RoHS指令 | Not Applicable |
| 工厂包装数量 | 50 |
| 产品 | Trimmer Resistors - SMD |
| 产品种类 | Trimmer Resistors - SMD |
| 元素类型 | Cermet |
| 电阻 | 1 MOhms |
| 封装 | Tube |
| 产品类型 | Multiturn |
| 系列 | TSM4 |
| 调整 | Top Slot |
| 类型 | Trimmer |
| RoHS | RoHS Compliant By Exemption |
| Track Resistance | :1Mohm |
| No. of Turns | :13 |
| 电阻公差 | :± 10% |
| Potentiometer Mounting | :SMD |
| 调节型 | :Top |
| Contact Resistance Variation + | :1% |
| End Resistance | :1ohm |
| 外部深度 | :3.5mm |
| External Length / Height | :5.3mm |
| 外宽 | :4.8mm |
| IP / NEMA Rating | :IP67 |
| Operating Temperature Max | :155°C |
| Operating Temperature Min | :-65°C |
| 工作温度范围 | :-65°C to +155°C |
| Proof Voltage | :600V |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :SMD |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| 终端类型 | :Surface Mount (SMD, SMT) |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| 额定电压 | :200V |
| Voltage Rating V DC | :200V |
| Weight (kg) | 0.017 |
| Tariff No. | 85334010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
