Vishay / Sfernice

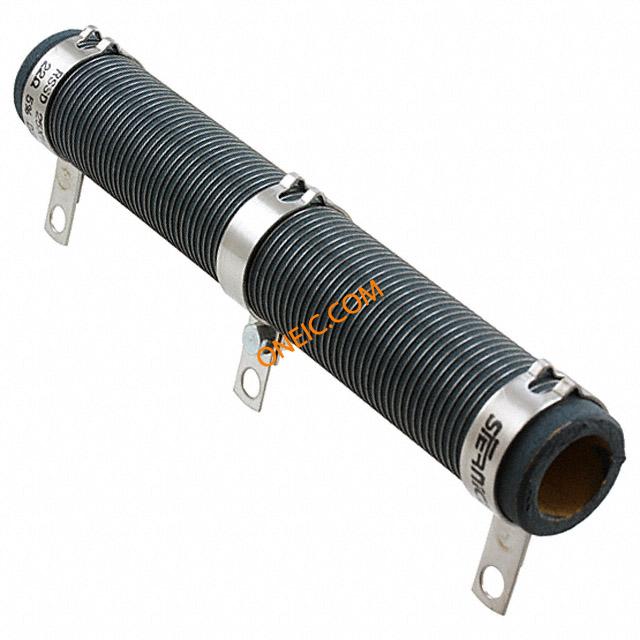

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 6 |
| 最小起订量 | 6 |
| 直径 | 1.063" OD, 0.646" ID (27.00mm x 16.40mm) |
| 电阻（欧姆） | 100 |
| 安装类型 | Chassis Mount |
| 标准包装 | 6 |
| 功率（瓦特） | 200W |
| 封装 | Bulk |
| 长度 | 6.614" (168.00mm) |
| 调节型 | Slide |
| 封装/外壳 | Cylinder, Tube |
| 端子 | Solder Lug |
| 容差 | ±5% |
| 其他名称 | RSSD-100A |
| RoHS指令 | Lead free / RoHS Compliant |
| 额定功率 | 200W |
| 电阻 | 100Ω |
| 技术 | Wire Wound |
| 温度系数 | ±75ppm/°C |
| 端接类型 | Radial |
| 表壳直径 | 27 mm |
| 工厂包装数量 | 6 |
| 产品 | Power Resistors Wirewound Vitreous Enamel |
| 工作温度范围 | - 55 C to + 450 C |
| 系列 | RSSD |
| 表壳长度 | 168 mm |
| 类型 | Adjustable Wirewound Vitreous Resistors, Low Ohmic Values |
| RoHS | RoHS Compliant |
| 产品范围 | :VISHAY - RSSD Series |
| 电阻公差 | :± 5% |
| Resistor Terminals | :Solder Lug |
| Resistor Element Material | :Wirewound |
| 主体直径 | :27mm |
| External Length / Height | :168mm |
| Full Power Rating Temperature | :25°C |
| Operating Temperature Max | :450°C |
| Operating Temperature Min | :-55°C |
| Resistor Case Style | :Tubular |
| Resistor Mounting | :Panel |
| Surge Power Rating | :2000W |
| Surge Power Rating Time | :5s |
| Temperature Coeff. + | :75ppm/°C |
| Temperature Coeff. - | :75ppm/°C |
| 终端类型 | :AN collar |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Weight (kg) | 0.1 |
| Tariff No. | 85332900 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
