vishay / dale

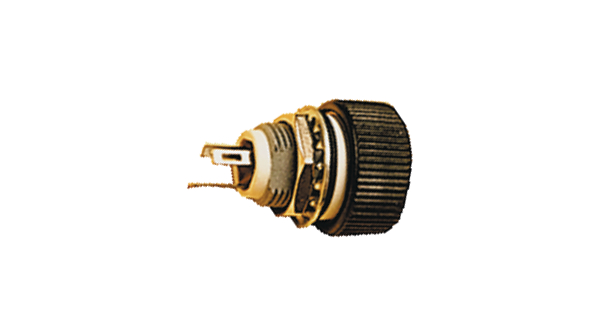

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Potentiometer |
| 电阻值 | 10 KOhm |
| 容差 | 20 % |
| 圈数 | 1(Elec)|1(Mech) Turns |
| 额定功率 | 1 W |
| 安装 | Panel Mount |
| 技术 | Cermet |
| 工作温度 | -40 to 85 °C |
| 轴直径 | 16 mm |
| 标准包装 | Boxed |
| 产品种类 | Potentiometers |
| RoHS | RoHS Compliant By Exemption |
| 产品 | Knob Operating Potentiometer |
| 安装风格 | Panel |
| 锥度 | Linear |
| 电阻 | 10 kOhms |
| 元素类型 | Cermet |
| 轴类型 | Knob |
| 端接类型 | Solder Lug |
| 额定电压 | 100 V |
| 工作温度范围 | - 40 C to + 85 C |
| 封装 | Bulk |
| 系列 | P16 |
| 轴长度 | 7 mm |
| 工厂包装数量 | 20 |
| 温度系数 | 150 PPM / C |
| メーカ | Vishay |
| 製品カテゴリ | ポテンショメータ |
| 製品 | Knob Operating Potentiometer |
| 取り付け様式 | Panel |
| テーパー | Linear |
| 回転数 | 1 |
| 抵抗 | 10 kOhms |
| 定数型 | Cermet |
| シャフト タイプ | Knob |
| 末端様式 | Solder Lug |
| 定格電圧 | 100 V |
| 電力定格 | 1 W |
| 公差 | 20 % |
| 動作温度範囲 | - 40 C to + 85 C |
| パッケージ化 | Bulk |
| シリーズ | P16 |
| シャフト径 | 10 mm |
| シャフト長 | 7 mm |
| 工場パックの数量 | 20 |
| 温度係数 | 150 PPM / C |
| タイプ | Potentiometer, Plastic Black Knob |
| 单位包 | 20 |
| 最小起订量 | 20 |
| 电阻（欧姆） | 10k |
| 促动器长度 | 0.354" (9.00mm) |
| 安装类型 | Panel Mount |
| 尺寸 - 主体 | Round - 0.630" Dia x 0.354" L (16.00mm x 9.00mm) |
| 电阻材料 | Cermet |
| 功率（瓦特） | 1W |
| 促动器直径 | 0.630" (16.00mm) |
| 调节型 | Top Adjustment |
| 执行器类型 | Knob |
| 回转 | 300° |

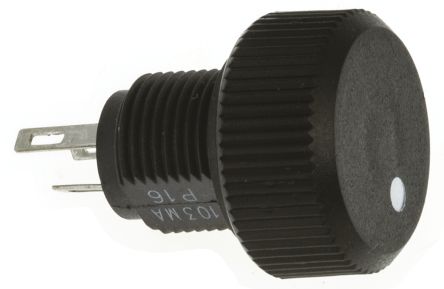

| 其他名称 | P16NP-10K |
| RoHS指令 | Lead free / RoHS Compliant |
| 直径 | 16mm |
| 外形尺寸 | 16 Dia. x 24.5mm |
| 身高 | 24.5mm |
| 最高工作温度 | +85°C |
| 最大阻力 | 10kΩ |
| 最低工作温度 | -40°C |
| Track Resistance | :10kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| 电阻公差 | :± 20% |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| 主体直径 | :16mm |
| Electrical Angular Rotation Tolerance + | :10° |
| Electrical Angular Rotation Tolerance - | :10° |
| External Length / Height | :23mm |
| Full Power Rating Temperature | :40°C |
| Mechanical Angular Rotation Tolerance + | :5° |
| Mechanical Angular Rotation Tolerance - | :5° |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Overload Voltage | :750V |
| 面板开孔直径 | :10.1mm |
| Proof Voltage | :2500V |
| Resistor Element Material | :Cermet |
| Rotation Electrical Angle | :270° |
| Rotation Mechanical Angle | :300° |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| 终端类型 | :Solder Lug |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Weight (kg) | 0.012 |
| Tariff No. | 85334010 |
| Material,Element | Cermet |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 1W |
| Leads | solder lugs |
| Knob dimensions | Ø16 x 8mm |
| 功率 | 500mW |
| Potentiometer type | shaft |
| Characteristics | linear |
| Temperature coefficient | 1000ppm/°C |
| Potentiometer kind | single turn |
| Gross weight | 6.59 g |
| Operating temperature | -40...85°C |
| Electrical rotation angle | 270° |
| Track material | cermet |
| Panel cutout diameter | 10mm |
| Multiplicity | 1 |
| 密封 | IP67 |
| Collective package [pcs] | 20 |
| spg | 20 |
