Vishay / Spectrol

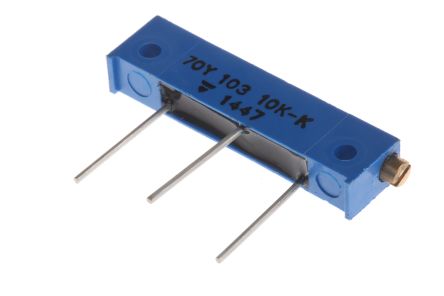

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| メーカ | Vishay |
| 製品カテゴリ | トリマーレジスタ：スルーホール |
| RoHS | 免責による RoHS 準拠 |
| 製品 | Trimmer Resistors - Multi Turn |
| 製品タイプ | Multi-Turn |
| 回転数 | Multi Turn |
| 抵抗 | 10 kOhms |
| 末端様式 | Pin |
| 電力定格 | 1 W |
| 公差 | 10 % |
| 温度係数 | 100 PPM / C |
| 調節 | Side Slot |
| 定数型 | Cermet |
| 取り付け | PCB Mount |
| 動作温度範囲 | - 65 C to + 125 C |
| 工場パックの数量 | 50 |
| タイプ | Trimming Potentiometer |
| 单位包 | 50 |
| 最小起订量 | 100 |
| 深度 | 4.83mm |
| 外形尺寸 | 33.53 x 4.83 x 8mm |
| 身高 | 8mm |
| 长度 | 33.53mm |
| 最高工作温度 | +150°C |
| 最大阻力 | 10kΩ |
| 最低工作温度 | -55°C |
| 安装类型 | Through Hole |
| 圈数 | 20 |
| 额定功率 | 1W |
| 轴直径 | 2.79 mm |
| 温度系数 | ±100ppm/°C |
| 端接类型 | Pin |
| 容差 | ±10% |
| RoHS指令 | Compliant |
| 工厂包装数量 | 50 |
| 产品 | Trimmer Resistors - Multi Turn |
| 产品种类 | Trimmer Resistors - Through Hole |
| 工作温度范围 | - 65 C to + 125 C |
| 元素类型 | Cermet |
| 电阻 | 10 kOhms |
| 产品类型 | Multi-Turn |
| 安装 | PCB Mount |
| 调整 | Side Slot |
| 类型 | Trimming Potentiometer |
| Track Resistance | :10kohm |
| No. of Turns | :20 |
| 电阻公差 | :± 10% |
| Potentiometer Mounting | :Through Hole |
| 调节型 | :Horizontal |
| Approval Category | :MIL-R-22097 |
| Contact Resistance Variation + | :3% |
| End Resistance | :2ohm |
| External Length / Height | :8mm |
| Full Power Rating Temperature | :85°C |
| 引线直径 | :0.8mm |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-55°C |
| Proof Voltage | :1000V |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :Through Hole |
| Resistor Terminals | :Radial Leaded |
| 系列 | :70Y |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| 额定电压 | :400V |
| Voltage Rating V DC | :400V |
| Weight (kg) | 0.002 |
| Tariff No. | 85334010 |
| DielectricStrength | 1000V |
| DielectricVoltage | 1000VAC |
| InsulationResistance | 1000Megohms |
| LoadLife | 1000hr |
| Material,Element | Cermet |
| MountingType | PCB |
| NumberofTurns | 20 |
| Power,Rating | 1W |
| Resistance,End | 2% |
| Resistance,Insulation | 1000Megohms |
| RotationalLife | 200Cycles |
| TemperatureCoefficient | ±100ppm/°C |
| Temperature,Operating,Maximum | +150°C |
| Temperature,Operating,Minimum | -55°C |
| 端子 | PCPins |
| 扭矩 | 5Oz./in. |
| 重量 | 0.116Oz(Max.) |
