Vishay / Spectrol

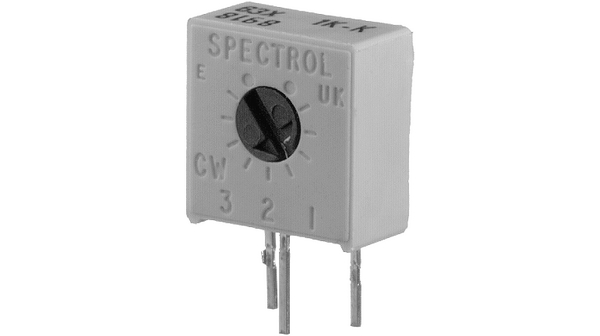

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 200 |
| 最小起订量 | 200 |
| 工厂包装数量 | 200 |
| 产品 | Trimmer Resistors - Single Turn |
| 产品种类 | Trimmer Resistors - Through Hole |
| 外形尺寸 | 0.375 in W x 0.375 in L x 0.19 in H |
| 锥度 | Linear |
| 端接类型 | Pin |
| 工作温度范围 | - 55 C to + 125 C |
| 元素类型 | Cermet |
| 电阻 | 50 kOhms |
| 产品类型 | Single Turn |
| 额定功率 | 500 mW (1/2 W) |
| 调整 | Top Slot |
| 容差 | 10 % |
| RoHS | RoHS Compliant By Exemption |
| Track Resistance | :50kohm |
| No. of Turns | :1 |
| 电阻公差 | :± 10% |
| 温度系数 | :± 100ppm/°C |
| Potentiometer Mounting | :Through Hole |
| 调节型 | :Horizontal |
| Approval Category | :MIL-R-22097 |
| Contact Resistance Variation + | :1% |
| End Resistance | :2ohm |
| External Length / Height | :10.03mm |
| Full Power Rating Temperature | :70°C |
| Lead Cross-section Depth | :0.81mm |
| Lead Cross-section Width | :0.25mm |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Proof Voltage | :1000V |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :Through Hole |
| Resistor Terminals | :Radial Leaded |
| Rotation Mechanical Angle | :270° |
| 系列 | :63X |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| 终端类型 | :PCB Terminals |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| 额定电压 | :400V |
| Voltage Rating V DC | :300V |
| Weight (kg) | 0.078 |
| Tariff No. | 85334010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
