Vishay / Sfernice

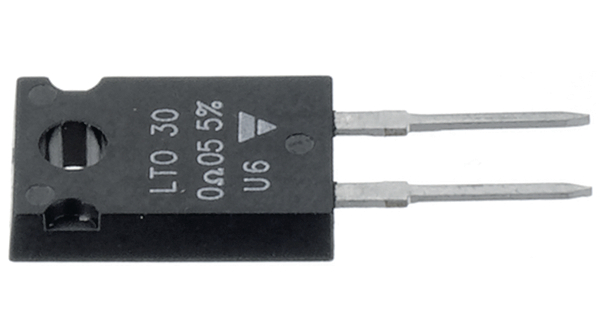

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 50 |
| 最小起订量 | 50 |
| 封装 | Tube |
| 电阻（欧姆） | 5 |
| 产品特点 | Non-Inductive |
| 端子数 | 2 |
| 供应商设备封装 | TO-220 |
| 温度系数 | ±150ppm/°C |
| 身高 | 0.650" (16.50mm) |
| 尺寸/尺寸 | 0.409" L x 0.126" W (10.40mm x 3.20mm) |
| 功率（瓦特） | 50W |
| 标准包装 | 50 |
| 成分 | Thick Film |
| 容差 | ±1% |
| 其他名称 | LT50A-5.00 |
| 封装/外壳 | TO-220-2 |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品范围 | :VISHAY - LTO 50 Series |
| 电阻 | :5ohm |
| 额定功率 | :50W |
| 电阻公差 | :± 1% |
| Resistor Case Style | :Radial Leaded |
| Resistor Element Material | :Thick Film |
| 额定电压 | :250V |
| Dielectric Strength VAC | :1500V |
| 外部深度 | :3.2mm |
| External Length / Height | :16.2mm |
| 外宽 | :10.4mm |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +150°C |
| Resistor Mounting | :Through Hole |
| 系列 | :LTO |
| Temperature Coeff. + | :150ppm/°C |
| Temperature Coeff. - | :150ppm/°C |
| Tolerance + | :1% |
| Tolerance - | :1% |
| Weight (kg) | 0.00141 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
