vishay / semiconductor

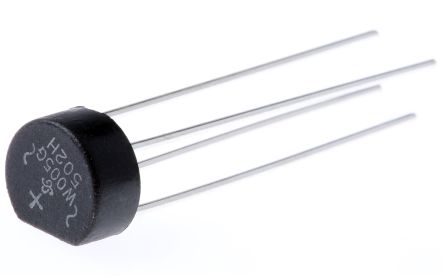

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 4Case WOG |
| 配置 | Single |
| 桥型 | Single Phase |
| 峰值反向重复电压 | 50 V |
| 峰值反向电流 | 5 uA |
| 峰值平均正向电流 | 1.5 A |
| 峰值正向电压 | 1@1A V |
| 工作温度 | -55 to 150 °C |
| 安装 | Through Hole |
| 标准包装 | Bulk |
| 单位包 | 3000 |
| 最小起订量 | 3000 |
| 封装 | Bulk |
| 安装类型 | Through Hole |
| 供应商设备封装 | WOG |
| 电压 - 峰值反向（最大） | 50V |
| 电流 - DC正向（If ） | 1.5A |
| 封装/外壳 | 4-Circular, WOG |
| 速度 | Standard Recovery >500ns, > 200mA (Io) |
| 二极管类型 | Single Phase |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 9.86 x 8.84 x 5.6mm |
| 身高 | 5.6mm |
| 长度 | 9.86mm |
| 最高工作温度 | +150 °C |
| 最低工作温度 | -55 °C |
| 包装类型 | WOG |
| 峰值不重复正向浪涌电流 | 50A |
| 峰值RMS反向电压 | 35V |
| 引脚数 | 4 |
| 宽度 | 8.84mm |
| 工厂包装数量 | 3000 |
| 产品 | Single Phase Bridge |
| 产品种类 | Bridge Rectifiers |
| RoHS | RoHS Compliant By Exemption |
| 最大RMS反向电压 | 35 V |
| 正向连续电流 | 1.5 A |
| 最大反向漏泄电流 | 5 uA |
| 正向电压下降 | 1 V |
| 峰值反向电压 | 50 V |
| 安装风格 | Through Hole |
| 最大浪涌电流 | 50 A |
| 封装/外壳 | WOG |
| No. of Phases | :Single |
| Repetitive Reverse Voltage Vrrm Max | :50V |
| Forward Current If(AV) | :1.5A |
| Forward Voltage VF Max | :1V |
| Bridge Rectifier Case Style | :WOG |
| No. of Pins | :4 |
| Diode Mounting Type | :Through Hole |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :150°C |
| MSL | :- |
| Body Height Max | :5.6mm |
| Current Temperature | :25°C |
| Device Marking | :W005G |
| 外部深度 | :10mm |
| External Diameter | :9.86mm |
| External Length / Height | :34mm |
| 外宽 | :10mm |
| Forward Surge Current Ifsm Max | :50A |
| Junction Temperature Tj Max | :150°C |
| Junction Temperature Tj Min | :-55°C |
| 引线间距 | :5.6mm |
| 工作温度范围 | :-55°C to +150°C |
| Output Current Max | :1.5A |
| RMS Input Voltage | :35V |
| 终端类型 | :Wire lead |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.00112 |
| Tariff No. | 85411000 |
| Current - DC Forward (If) (Max) | 1.5A |
