Vishay

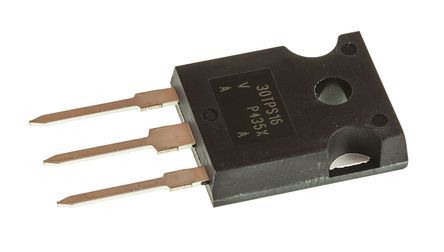

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 外形尺寸 | 15.87 x 5.31 x 20.7mm |
| 身高 | 20.7mm |
| 长度 | 15.87mm |
| 最大门极触发电流 | 45mA |
| 最大门极触发电压 | 2V |
| 最大保持电流 | 100mA |
| 最高工作温度 | +125 °C |
| 最低工作温度 | -40 °C |
| 安装类型 | Through Hole |
| 包装类型 | TO-247AC |
| 峰值通态电压 | 1.3V |
| 引脚数 | 3 |
| 额定通态平均电流 | 20A |
| 重复峰值正向阻断电压 | 1600V |
| 重复峰值断态电流 | 0.5mA |
| 重复峰值反向电压 | 1600V |
| 浪涌额定电流 | 300A |
| 晶闸管类型 | SCR |
| 宽度 | 5.31mm |
| 安装风格 | Through Hole |
| 产品种类 | SCRs |
| 额定重复关闭状态电压VDRM | 1600 V |
| 最大栅极峰值反向电压 | 10 V |
| 保持电流（ Ih最大值） | 100 mA |
| 封装 | Tube |
| 正向电压下降 | 1.3 V |
| 不重复通态电流 | 300 A |
| 门极触发电流 | 45 mA |
| 封装/外壳 | TO-247AC |
| 关闭状态漏泄电流@ VDRM IDRM | 0.5 mA |
| RoHS | RoHS Compliant By Exemption |
| Peak Repetitive Off-State Voltage, Vdrm | :1600V |
| Gate Trigger Current Max, Igt | :60mA |
| Current It av | :20A |
| On State RMS Current IT(rms) | :30A |
| Peak Non Rep Surge Current Itsm 50Hz | :300A |
| Holding Current Max Ih | :100mA |
| Gate Trigger Voltage Max Vgt | :2.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| Thyristor Case | :TO-247AC |
| No. of Pins | :3 |
| MSL | :- |
| Current Itsm | :300A |
| Device Marking | :30TPS16 |
| Junction Temperature Tj Max | :25°C |
| 工作温度范围 | :-40°C to +125°C |
| Repetitive Reverse Voltage Vrrm Max | :1600V |
| 端接类型 | :Through Hole |
| Weight (kg) | 0.006 |
| Tariff No. | 85413000 |
