Vishay / Spectrol

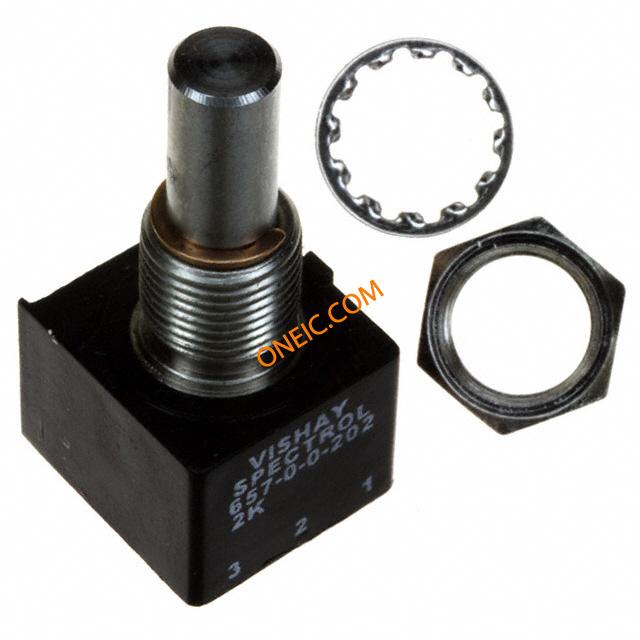

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 电阻（欧姆） | 2k |
| 促动器长度 | 0.875" (22.23mm) |
| 端接类型 | Solder Lug |
| 圈数 | Single |
| 温度系数 | ±600ppm/°C |
| 封装 | Bulk |
| 电阻材料 | Conductive Plastic |
| 功率（瓦特） | 1W |
| 促动器直径 | 0.250" (6.35mm) |
| 调节型 | Side Adjustment |
| 执行器类型 | Round Shaft |
| 标准包装 | 10 |
| 回转 | 250° |
| 容差 | ±20% |
| 尺寸 - 主体 | Square - 0.500" L x 0.625" W x 0.688" H (12.70mm x 15.81mm x 17.46mm) |
| RoHS指令 | Compliant |
| 工厂包装数量 | 10 |
| 产品 | Precision Potentiometer |
| 产品种类 | Precision Potentiometers |
| 工作温度范围 | - 40 C to + 125 C |
| 元素类型 | Conductive Plastic |
| 电阻 | 2 kOhms |
| 安装风格 | Panel |
| 线性 | +/- 5 % |
| 轴直径 | 0.2497 in |
| 轴长度 | 0.875 in |
| 系列 | 657 |
| 额定功率 | 1 W |
| RoHS | In Transition |
| Angle,Mechanical | 250° |
| Diameter,Shaft | 0.2497" |
| DielectricStrength | 500VAC |
| 外形尺寸 | 0.625"L×0.688"W×0.5"H |
| Material,Element | ConductivePlastic |
| MountingType | Panel |
| NumberofTurns | 1 |
| Power,Rating | 1W |
| RotationalLife | 2000000Revolutions |
| 锥度 | Linear |
| TemperatureCoefficient | ±600ppm/°C |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | -40°C |
| 端子 | Lug |
| 扭矩 | 3Oz./in. |
| 类型 | Potentiometer |
