Vishay

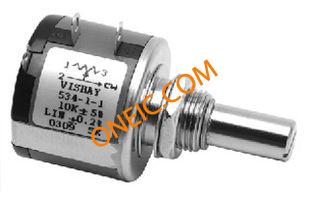

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Track Resistance | :20kohm |
| Track Taper | :Linear |
| No. of Turns | :10 |
| 轴直径 | :6.34mm |
| 轴长度 | :20.62mm |
| 电阻公差 | :± 5% |
| 额定功率 | :2W |
| Potentiometer Mounting | :Bushing |
| No. of Gangs | :1 |
| Weight (kg) | 0.023 |
| Tariff No. | 85331000 |
| Angle,Mechanical | 3600° |
| Diameter,Shaft | 0.2497" |
| DielectricStrength | 1000VAC |
| 外形尺寸 | 0.875"Dia×0.75"L |
| InsulationResistance | 1000Megohms(Min.)@500VDC |
| 线性 | ±0.25% |
| Material,Element | Wirewound |
| MountingType | Panel |
| NumberofTurns | 10 |
| Power,Rating | 2W |
| 电阻 | 20Kilohms |
| Resistance,Insulation | 1000Megohms |
| 分辨率 | 0.015% |
| RotationalLife | 1000000Revolutions |
| 锥度 | Linear |
| TemperatureCoefficient | ±20ppm/°C |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | -55°C |
| 端子 | SolderLug |
| ThreadLength | 30000ShaftRevolution |
| 容差 | ±5% |
| 扭矩 | 0.5Oz./in.(Section1),0.9Oz./in.(Section2) |
| 类型 | Potentiometer |
| RoHS指令 | RoHS Compliant Part |
