Vishay Spectrol

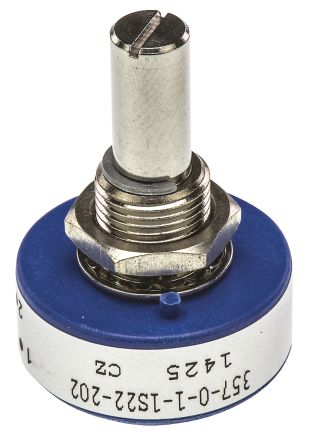

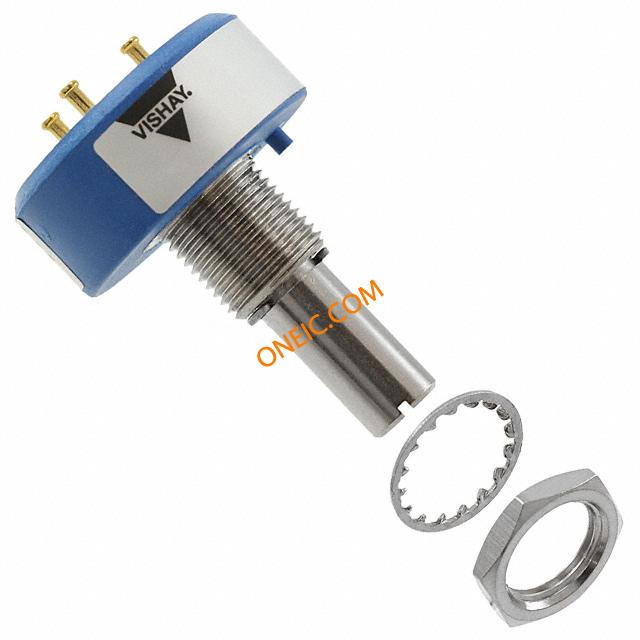

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 单位包 | 50 |
| 最小起订量 | 50 |
| 电阻（欧姆） | 2k |
| 促动器长度 | 0.866" (22.00mm) |
| 端接类型 | Solder Turret |
| 圈数 | Single |
| 温度系数 | ±600ppm/°C |
| 尺寸 - 主体 | Round - 0.875" Dia x 0.370" L (22.23mm x 9.40mm) |
| 封装 | Bulk |
| 电阻材料 | Conductive Plastic |
| 功率（瓦特） | 1W |
| 促动器直径 | 0.250" (6.35mm) |
| 调节型 | Top Adjustment |
| 执行器类型 | Slotted Shaft |
| 标准包装 | 50 |
| 回转 | Continuous |
| 容差 | ±20% |
| 其他名称 | SP357B-2.0K |
| RoHS指令 | Lead free / RoHS Compliant |
| 直径 | 22.23mm |
| 外形尺寸 | 22.23 Dia. x 34.5mm |
| 身高 | 34.5mm |
| 最大阻力 | 2kΩ |
| 安装孔直径为8mm | 3/8in |
| 安装类型 | Panel Mount |
| 电位器类型 | Linear |
| 额定功率 | 1W |
| 轴直径 | 6.35 mm |
| 系列 | 357 |
| RoHS | RoHS Compliant By Exemption |
| Track Resistance | :2kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| Shaft Length - Metric | :22.2mm |
| 电阻公差 | :± 20% |
| Potentiometer Mounting | :Panel |
| No. of Gangs | :1 |
| 主体直径 | :22.22mm |
| Dielectric Strength VAC | :1000V |
| Electrical Angular Rotation Tolerance + | :3° |
| Electrical Angular Rotation Tolerance - | :3° |
| External Length / Height | :8.77mm |
| Full Power Rating Temperature | :70°C |
| Linearity, + | :2% |
| Linearity, - | :2% |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +125°C |
| 电阻 | :2kohm |
| Resistor Element Material | :Conductive Plastic |
| Rotation Electrical Angle | :340° |
| Rotation Mechanical Angle | :360° |
| Rotational Life Cycles | :5000000 |
| 端接类型 | :Solder |
| 螺纹尺寸 | :3/8" 32 UNEF |
| Tolerance + | :20% |
| Tolerance - | :20% |
| Weight (kg) | 0.018 |
| Tariff No. | 85334010 |
| 轴直径 | 6.35mm |
| 功率 | 1W |
| Mechanical durability | 10000000cycles |
| Shaft surface | smooth |
| Multiplicity | 1 |
| Potentiometer type | shaft |
| Track material | plastic |
| Potentiometer kind | single turn |
| Gross weight | 0.02 kg |
| Linearity tolerance | ±2% |
| 轴长度 | 14mm |
| Potentiometer series | 357 |
| Characteristics | linear |
| Thread length | 8mm |
| Fastening thread | 3/8"x32UNEF |
| Collective package [pcs] | 4 |
| Potentiometer features | without limiters |
| spg | 4 |
