Vishay

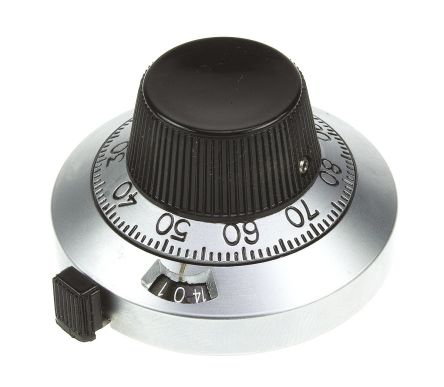

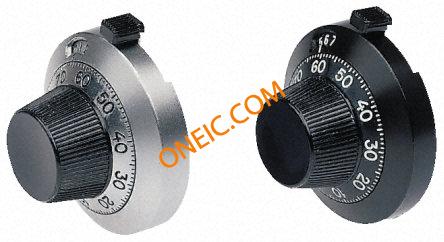

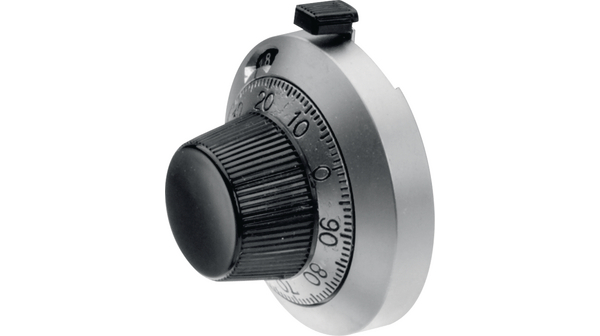

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 欧盟RoHS指令 | Compliant |
| 单位包 | 10 |
| 最小起订量 | 50 |
| RoHS指令 | Compliant |
| 轴直径 | :6.35mm |
| No. of Turns | :15 |
| Dial Composition | :Satin Chrome |
| 附件类型 | :Counting Dial |
| 应用范围 | :15 Turns Precision Potentiometers or Other Rotating Devices |
| 外部深度 | :25.4mm |
| External Diameter | :46mm |
| 安装孔直径 | :2.42mm |
| 适用于 | :0.375" Dia Potentiometers |
| 材质 | :Satin chrome, black markings |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-20°C |
| 面板开孔直径 | :14.27mm |
| 系列 | :21 |
| Weight (kg) | 0.066 |
| Tariff No. | 85339000 |
| 标准包装 | 10 |
| 圈数 | 15 |
| 轴尺寸 | 0.250" (6.35mm) |
| 轴直径 | 6.35mm |
| Knob dimensions | Ø46 x 25.4mm |
| Type of accessories for potentiometer | precise knob |
| Shaft surface | smooth |
| Multiplicity | 1 |
| Gross weight | 0.07 kg |
| 应用 | for multiturn potentiometers |
| Number of mechanical turns | 15 |
| Knobs features | with brake function |
| Kind of knob | with counting dial |
| Collective package [pcs] | 10 |
| spg | 10 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
