artesyn

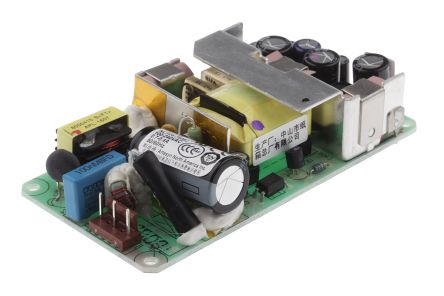

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Switching |
| 输入电压 | 90 to 264 V |
| 输出电压 | 5|12|-12 V |
| 最大额定电流 | 0.75(rms) A |
| 最大输出电流 | 2|0.8|0.1 A |
| 输出数 | 3 |
| 最大输出功率 | 20.8 W |
| 效率 | 70(Typ) % |
| 输入频率 | 47 to 440 Hz |
| 工作温度 | 0 to 50 °C |
| 标准包装 | Bulk |
| 深度 | 23.11mm |
| 长度 | 101.6mm |
| 线路调整 | ±2 %, ±5 % |
| 负载调整率 | ±2 %, ±5 % |
| 最高温度 | +50°C |
| 最低气温 | 0°C |
| 平均无故障时间 | 150000h |
| 输出电流 | 0.1 A, 0.8 A, 2 A |
| 包装类型 | Open Frame |
| 额定功率 | 20.8W |
| 纹波和噪声 | 120 mV Pk-Pk, 50 mV Pk-Pk |
| 重量 | 115g |
| 宽度 | 50.58mm |
| RoHS指令 | Compliant |
| Power Supply Output Type | :Fixed |
| Input Voltage VAC | :90V to 264V |
| No. of Outputs | :3 |
| Output Voltage Nom. | :5V, 12V, -12V |
| Output Current Max | :2A, 800mA, 100mA |
| Output Power Max | :20.8W |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Bodies | :CCC, CSA, EN, IEC, UL, VDE |
| 外部深度 | :23.11mm |
| External Length / Height | :101.6mm |
| 外宽 | :52.58mm |
| Frequency Max | :440Hz |
| Frequency Min | :47Hz |
| 身高 | :101.6mm |
| 安装类型 | :Chassis |
| Operating Temperature Max | :50°C |
| Operating Temperature Min | :0°C |
| Output Current - Output 2 | :800mA |
| Output Current Nom - Output 3 | :100mA |
| Output Voltage - Output 2 | :12V |
| Output Voltage Nom - Output 3 | :-12V |
| 峰值输出电流 | :2.5A |
| Peak Output Current 2 | :1.2A |
| Peak Output Current 3 | :0.15A |
| 电源类型 | :Switch Mode |
| 电源电压 | :264V |
| Supply Voltage Max | :264V |
| Supply Voltage Min | :90V |
| Supply Voltage Typ | :110V AC, 230V AC |
| Weight (kg) | 0.13 |
| Tariff No. | 85044082 |
