Orion Fans

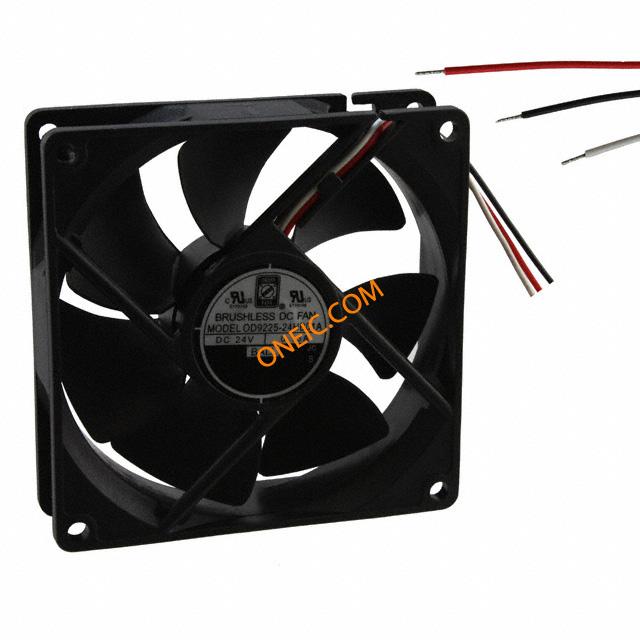

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 静态压力 | 0.130 in H2O (32.4 Pa) |
| 材料 - 刀片 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 噪音 | 35 dB |
| 额定电流 | 0.150A |
| 产品特点 | Speed Sensor (Tach) |
| 电压 - 额定 | 24VDC |
| 标准包装 | 1 |
| 材料 - 框架 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 轴承类型 | Ball |
| 尺寸/尺寸 | Square - 92.5mm L x 92.5mm H x 25mm W |
| 工作温度 | -4 ~ 176°F (-20 ~ 80°C) |
| Air Flow | 53.0 CFM (1.50m³/min) |
| 风扇类型 | Tubeaxial |
| 预期寿命 | 60000 hrs @ 40°C |
| 电压范围 | 12 ~ 28VDC |
| 端子 | 3 Wire Leads |
| 转速 | 2900 RPM |
| 框架尺寸（mm ） | 92 mm x 92 mm x 25 mm |
| 产品 | Fans |
| 产品种类 | Fans |
| 系列 | OD9225 |
| 端接类型 | Wire Leads |
| 外壳材料 | Polybutylene Terephthalate (PBT) |
| 电流类型 | DC |
| 电源电压 | 24 V |
| 风量 | 50 CFM |
| 额定功率 | 180 mW |
| 速度 | 2900 RPM |
| RoHS | RoHS Compliant |
| AirFlow | 53CFM |
| BearingType | 2Ball |
| Brand/Series | OD9225Series |
| 配置 | Square |
| Current,Rating | 0.15A |
| 外形尺寸 | 3.6x3.6x1(92x92x25)In.(mm) |
| Dimensions,Inches | 3.6x3.6x1In. |
| Dimensions,mm | 92x92x25mm |
| 方向 | ExhaustoverStruts |
| FanType | DC |
| 材质 | Plastic |
| NoiseLevel | 35dBA |
| PrimaryType | Fans |
| 回转 | CCW |
| 尺寸 | 3.6x1(92x25)In.(mm) |
| Size,Fan | 3.6x1(92x25)In.(mm) |
| StaticPressure | 0.13In.(H2O) |
| Temperature,Operating,Maximum | 80°C |
| Temperature,Operating,Minimum | -20°C |
| 类型 | Square |
| Voltage,Rating | 24VDC |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
