Wurth Electronics Inc

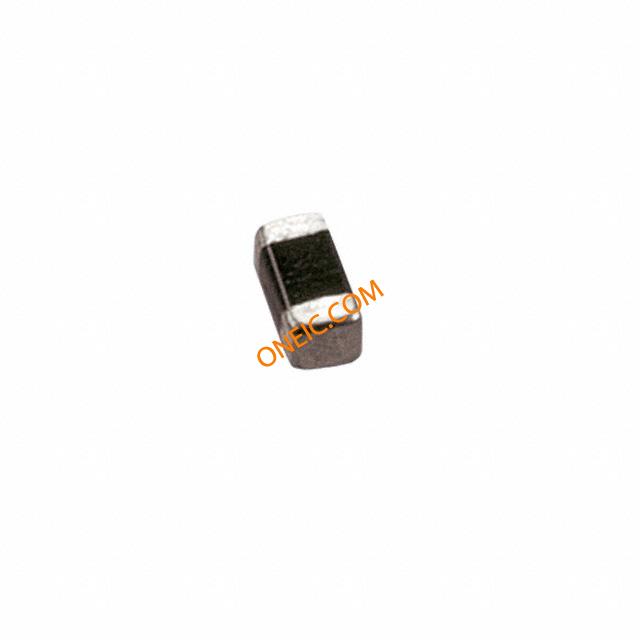

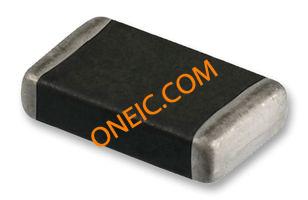

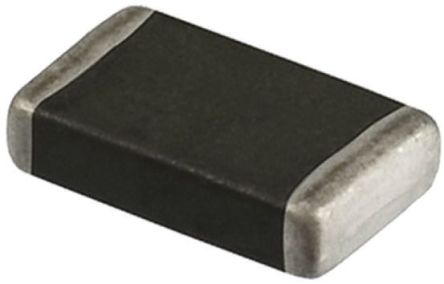

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 变阻器电压 | 5.5V |
| 最大交流电压 | 2.5VAC |
| 最大直流电压 | 3.3VDC |
| 能量 | 0.04J |
| 标准包装 | 10,000 |
| 电流 - 浪涌 | 20A |
| 封装 | Tape & Reel (TR) |
| 封装/外壳 | 0402 (1005 Metric) |
| 电路数 | 1 |
| 其他名称 | 732-2532-2 |
| RoHS指令 | Lead free / RoHS Compliant |
| 电容 | 180pF |
| 钳位电流 | 1A |
| 钳位电压 | 13V |
| 深度 | 0.5mm |
| 长度 | 1mm |
| 最大交流电压额定值 | 2.5V |
| 最大直流额定电压 | 3.3V |
| 最大浪涌电流 | 20A |
| 封装/外壳 | 0402 |
| 系列 | :WE-VS |
| Varistor Type | :ESD Protector |
| Peak Surge Current @ 8/20µs | :20A |
| Varistor Case | :0402 [1005 Metric] |
| Clamping Voltage Vc Max | :13V |
| Peak Energy (10/1000uS) | :40mJ |
| Voltage Rating V DC | :3.3V |
| Voltage Rating V AC | :2.5V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| SVHC | :No SVHC (20-Jun-2013) |
| Clamping Voltage @ 8/20µs Max | :10V |
| 工作温度范围 | :-40°C to +85°C |
| Peak Pulse Current IPP @ 8/20µs | :20A |
| 抑制器类型 | :Varistor |
| Surge Current | :20A |
| Weight (kg) | 0.00001 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
