Wurth Electronics

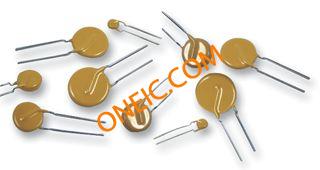

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Varistors |
| RoHS | RoHS Compliant |
| 直流电额定电压 | 56 V |
| 电压额定值AC | 40 V |
| 钳位电压 | 150 V |
| 直径 | 5 mm |
| 峰值浪涌电流 | 100 A |
| 浪涌能量额定值 | 2.1 J |
| 电容 | 500 pF |
| 工作温度范围 | - 40 C to + 85 C |
| 安装 | Radial |
| 封装 | Reel |
| 表壳直径 | 5 mm |
| 外形尺寸 | 5 mm Dia. |
| 系列 | WE-VD |
| 端接类型 | Radial |
| 容差 | 10 % |
| 变阻器电压 | 68 V |
| 钳位电流 | 1A |
| 能量 | 2.1J |
| 引线间距 | 5mm |
| 最大交流电压额定值 | 40V |
| 最大直流额定电压 | 56V |
| 最大浪涌电流 | 100A |
| RoHS指令 | Compliant |
| 单位重量 | 0.013898 oz |
| Varistor Type | :Transient Current |
| Peak Surge Current @ 8/20µs | :100A |
| Varistor Case | :Disc 5mm |
| Clamping Voltage Vc Max | :150V |
| Peak Energy (10/1000uS) | :2.1J |
| Voltage Rating V DC | :56V |
| Voltage Rating V AC | :40V |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 2 - 1 year |
| SVHC | :No SVHC (20-Jun-2013) |
| 主体直径 | :5mm |
| Clamping Voltage @ 8/20µs Max | :150V |
| Peak Pulse Current IPP @ 8/20µs | :100A |
| 抑制器类型 | :Varistor |
| Surge Current | :100A |
| Weight (kg) | 0.0006 |
| Tariff No. | 85334010 |
