Wurth Electronics Inc

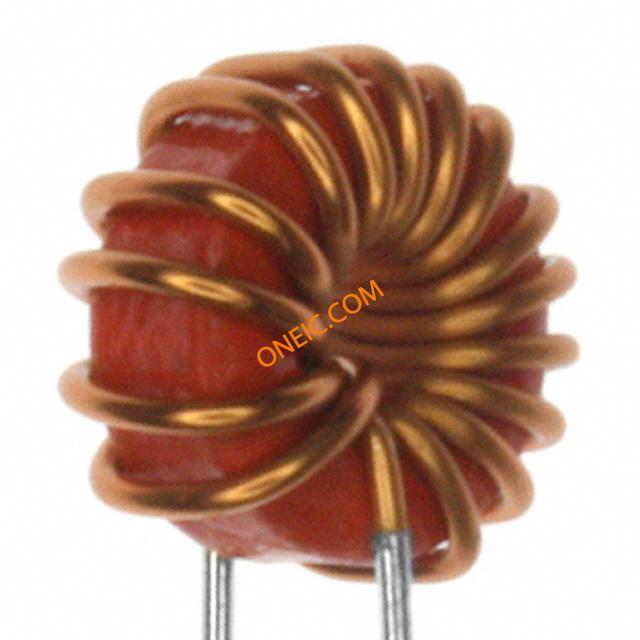

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 额定电流 | 2A |
| 直流电阻（DCR ） | 20 mOhm Max |
| 类型 | Toroidal |
| 标准包装 | 400 |
| 材料 - 芯 | Powdered Iron |
| 屏蔽 | Unshielded |
| 尺寸/尺寸 | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) |
| 工作温度 | -40°C ~ 105°C |
| 安装类型 | Through Hole |
| 电感 | 10µH |
| 封装/外壳 | Radial |
| 频率 - 测试 | 10kHz |
| 容差 | ±20% |
| 其他名称 | 732-1416 |
| 产品范围 | :WURTH ELEKTRONIK - WE-FI Series |
| Inductance Tolerance | :± 20% |
| DC Resistance Max | :0.02ohm |
| RMS Current (Irms) | :2A |

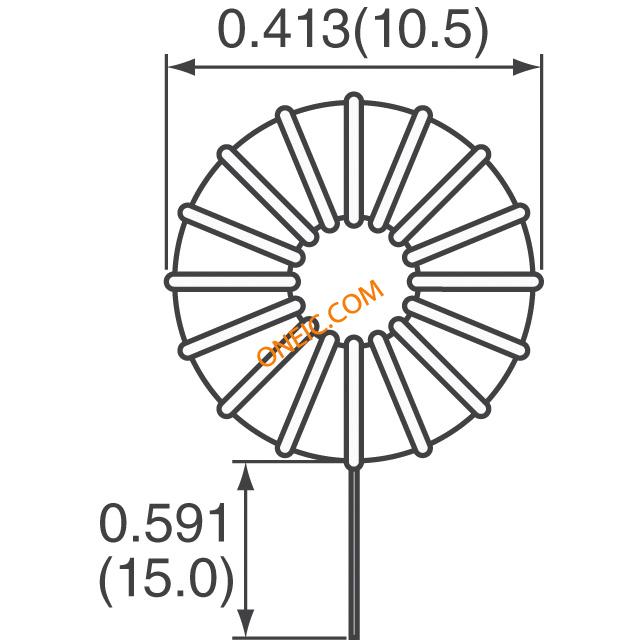

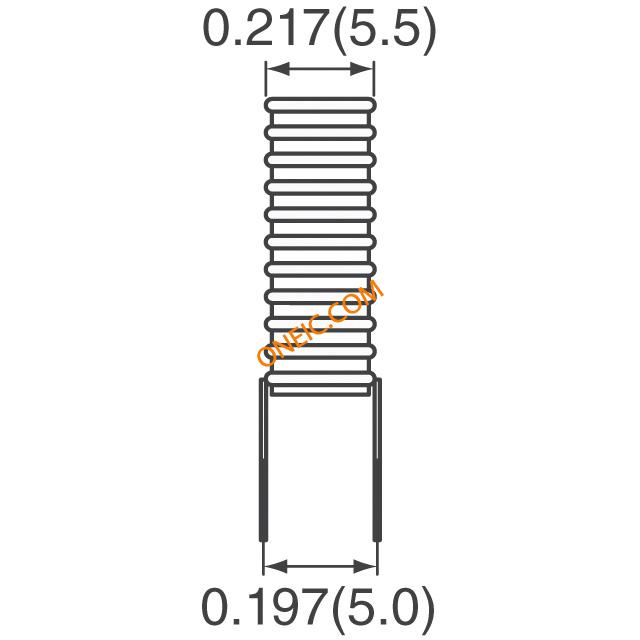

| Case Dimensions | :10.5mm x 5.5mm |
| SVHC | :No SVHC (20-Jun-2013) |
| 芯材 | :Iron Powder |
| DC Current Rating | :2A |
| Inductor Case Style | :Radial Leaded |
| 引线间距 | :5mm |
| No. of Pins | :2 |
| Weight (kg) | 0.00178 |
| Tariff No. | 85045095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
