Wurth Electronics

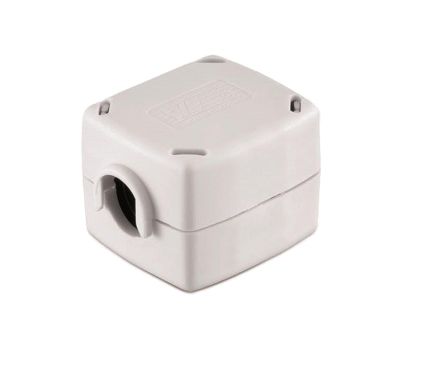

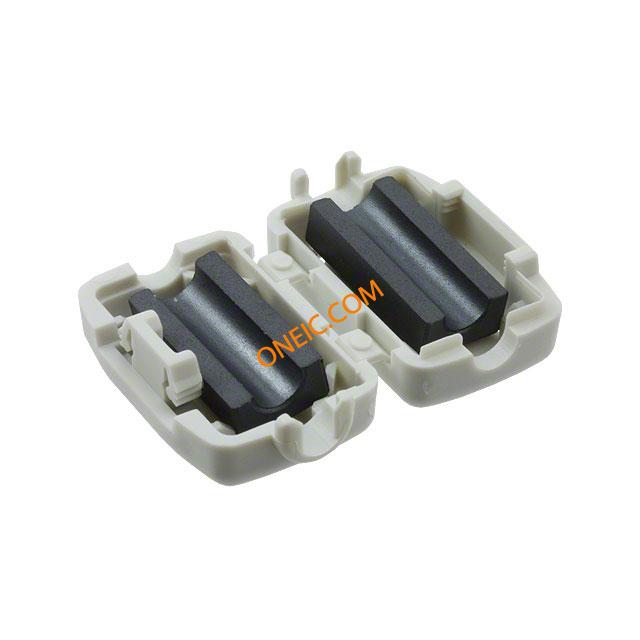

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Free Hanging |
| 外形尺寸 | 0.519" Dia (13.20mm) |
| 内部尺寸 | 0.196" Dia (5.00mm) |
| 测试频率 | 100MHz |
| 长度 | 1.279" L (32.50mm) |

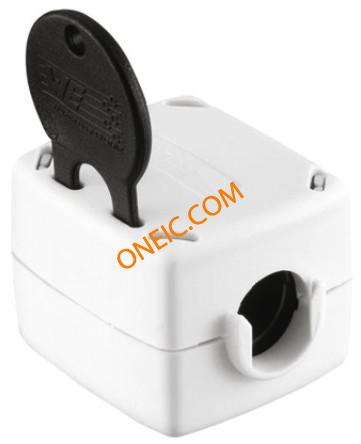

| 设计 | Hinged (Snap On), Key Required |
| 标准包装 | 42 |
| 阻抗 | 182 Ohm |
| 类型 | Round |
| 其他名称 | 732-3419 |
| 光圈直径 | 5.4mm |
| 应用 | EMI Suppression |
| 关键 | Yes |
| 材质 | 4 W 620 |
| 孔数 | 1 |
| 可开启 | Yes |
| 外深度 | 18.8mm |
| 外部尺寸 | 18.8 x 28.5 x 13.2mm |
| 外高 | 13.2mm |
| 外宽 | 28.5mm |
| RoHS指令 | Compliant |
| 产品种类 | Ferrite Clamp On Cores |
| 工作温度范围 | - 25 C to + 105 C |
| 封装 | Bulk |
| 形状 | Square |
| 产品类型 | Cable Single |
| RoHS | RoHS Compliant |
| Frequency Min | :1MHz |
| Frequency Max | :1GHz |
| Impedance @ 100MHz | :182ohm |
| Cable Diameter Max | :5mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Cable Diameter Min | :3.5mm |
| 表壳颜色 | :Grey |
| 深度 | :13.2mm |
| 外部深度 | :13.2mm |
| 外部长度 | :32.5mm |
| External Length / Height | :32.5mm |
| 外宽 | :18.8mm |
| Ferrite Case Style | :Split Core |
| Ferrite Mounting | :Snap On Cable |
| 频率范围 | :1MHz to 1GHz |
| 身高 | :32.5mm |
| Impedance @ 25MHz Typ | :98ohm |
| MSL | :- |
| Material Grade | :4 W 620 |
| 宽度 | :18.8mm |
| Weight (kg) | 0.011 |
| Tariff No. | 85045095 |
