Wurth Electronics Inc

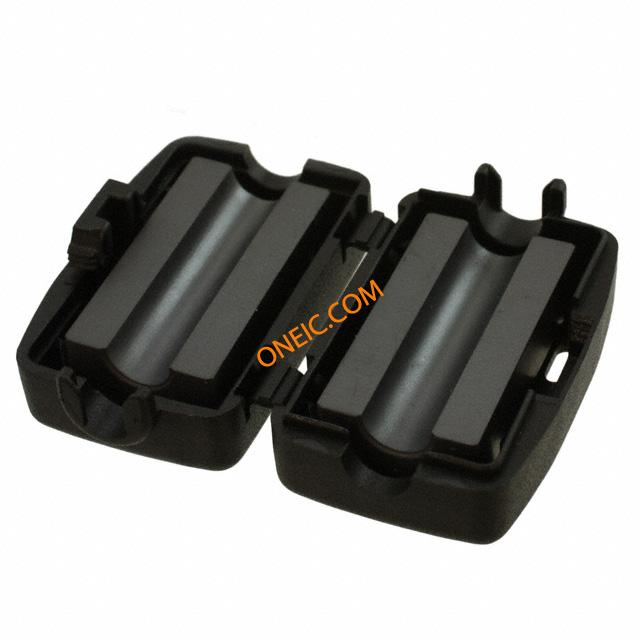

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 安装类型 | Free Hanging |
| 外形尺寸 | 0.716" Dia (18.20mm) |
| 内部尺寸 | 0.236" Dia (6.00mm) |
| 测试频率 | 100MHz |
| 长度 | 1.594" L (40.50mm) |
| 设计 | Hinged (Snap On), Key Required |
| 标准包装 | 180 |
| 阻抗 | 321 Ohm |
| 类型 | Round |
| 其他名称 | 732-3627 |
| Frequency Min | :1MHz |
| Frequency Max | :1GHz |
| Impedance @ 100MHz | :321ohm |
| Cable Diameter Max | :6mm |
| SVHC | :No SVHC (20-Jun-2013) |
| Cable Diameter Min | :4.5mm |
| 表壳颜色 | :Black |
| 深度 | :18.2mm |
| 外部深度 | :18.2mm |
| 外部长度 | :40.5mm |
| External Length / Height | :40.5mm |
| 外宽 | :23.7mm |
| Ferrite Case Style | :Split Core |
| Ferrite Mounting | :Snap On Cable |
| 频率范围 | :1MHz to 1GHz |
| 身高 | :40.5mm |
| Impedance @ 25MHz Typ | :176ohm |
| MSL | :- |
| Material Grade | :4 W 620 |
| 宽度 | :23.7mm |
| Weight (kg) | 0.03498 |
| Tariff No. | 85045095 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
