Wurth Elektronik

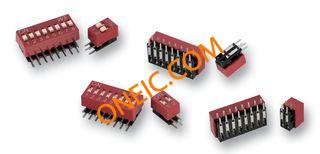

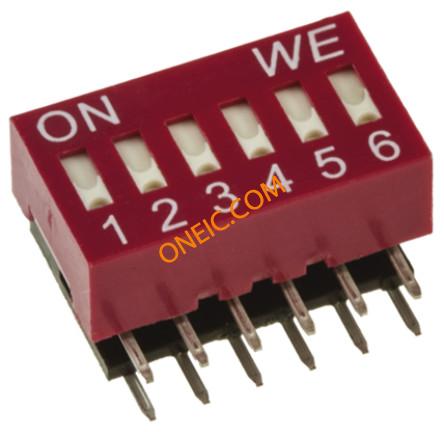

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 执行器类型 | Flat |
| 联系配置 | 6P |
| 触点额定电流 | 25 mA |
| 触点材料 | Copper Alloy |
| 最高工作温度 | +85°C |
| 机械寿命 | 5000Cycles |
| 最低工作温度 | -40°C |
| 安装类型 | Through Hole |
| 位置数 | 6 |
| 封装形式 | DIP |
| 开关类型 | :DIP |
| No. of Switch Positions | :6 |
| 执行器风格 | :Flat |
| 节距 | :2.54mm |
| Contact Current DC Max | :25mA |
| Switch Mounting | :Through Hole |
| SVHC | :No SVHC (20-Jun-2013) |
| 驱动类型 | :Flat |
| 颜色 | :Red |
| 接触电阻 | :50mohm |
| 外部深度 | :7.99mm |
| External Length / Height | :9.6mm |
| 外宽 | :16.24mm |
| 绝缘电阻 | :100Mohm |
| 材质 | :PPS / HTN / PA46 |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| 端子电镀 | :Tin |
| Weight (kg) | 0.001 |
| Tariff No. | 85365011 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
