HARWIN

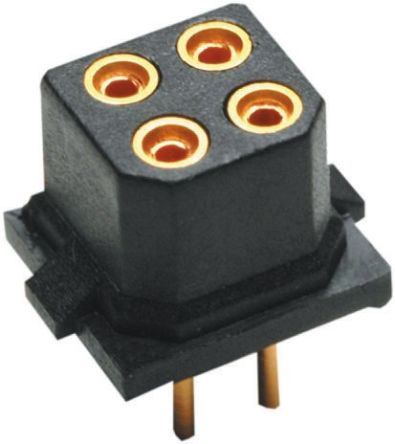

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Straight |
| 触点材料 | Beryllium Copper, Brass |
| 额定电流 | 3A |
| 安装类型 | Through Hole |
| 触点数 | 10 |
| 行数 | 2 |
| 间距 | 2mm |
| 系列 | M80 |
| 端接方式 | Solder |
| 类型 | Board to Board |
| 额定电压 | 120 V ac/dc |
| 工厂包装数量 | 18 |
| 安装方式 | Vertical |
| 产品种类 | Headers & Wire Housings |
| 触点电镀 | Gold |
| 外壳材料 | Thermoplastic |
| 端接类型 | Through Hole |
| 联系人性别 | Socket (Female) |
| 位置/触点数 | 10 |
| 商品名 | DATAMATE |
| 产品类型 | Receptacles / Sockets - PCB |
| RoHS | RoHS Compliant |
| 节距 | :2mm |
| No. of Rows | :2 |
| No. of Contacts | :10 |
| 性别 | :Receptacle |
| 接触端子 | :Through Hole Vertical |
| SVHC | :No SVHC (20-Jun-2013) |
| 接触电阻 | :25mohm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :100mohm |
| 引线间距 | :2mm |
| 材质 | :Glass Filled Thermoplastic |
| No. of Mating Cycles | :500 |
| No. of Poles | :10 |
| Proof Voltage | :360V |
| Wire Size AWG Max | :22AWG |
| Wire Size AWG Min | :28AWG |
| 工作电压 | :120V |
| Weight (kg) | 0.067 |
| Tariff No. | 85369010 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
